Check out the video above or the step by step guide below for assistance with this repair

iFixit iPhone 14 Plus Screen Replacement Guide

Here are some tools you may need to help you complete the repair.

Please note: A discounted simple toolset with the tools you need is available in a pop-up when you add this product to cart

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2 and Y000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• 1mm Tesa Tape 61395 Roll Double Sided Adhesive Tape (50m)
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iGadget Universal Magnetic Work Project Mat with Marker (30cm x 25cm)

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it. The battery can't be disconnected from the front on the iPhone 14 Plus, so use only plastic tools near the connectors and don't touch exposed contacts
• Track your screws on a screw mat or tape them to a drawing of your phone. This repair uses two 6.8mm pentalobe screws and Y000 tri-point screws in three lengths (0.8mm, 1.0mm and 1.4mm). Keep them apart so each goes back in the right place
• Remove the two 6.8mm pentalobe screws beside the Lightning port, then heat the bottom edge to soften the adhesive
• Insert picks under the screen's plastic bezel, not into the gap between the bezel and the display, no deeper than 3mm (2mm along the left edge). The screen opens from the right-hand side like a book - the display cables are on the left
• Disconnect the display cable first (cover held by one 0.8mm Y000 screw), then the front sensor cable (cover held by one 1.0mm Y000 screw). When reconnecting, press one side and then the other until it clicks - never press in the middle
• The front sensor assembly (with the ambient light sensor) is not included, so transfer it from your old screen - the earpiece and Face ID camera stay in the phone. Remove its bracket (two 1.4mm Y000 screws), warm the top edge, gently lift it with a spudger or opening card. A broken cable can lose Face ID
• When fitting the new screen, hook the clips along the top edge in first, then press the rest of the screen down

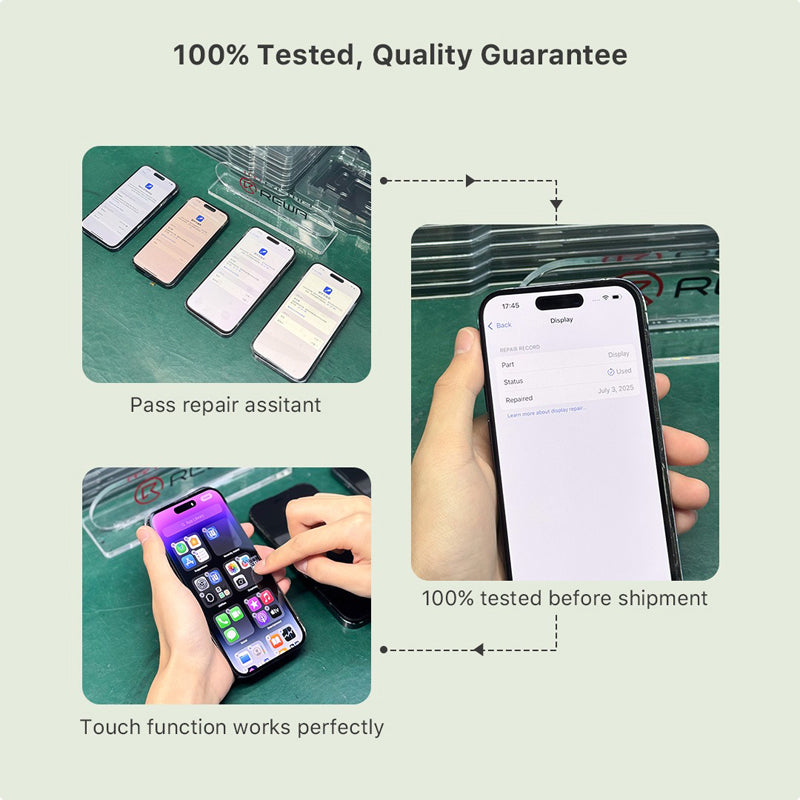

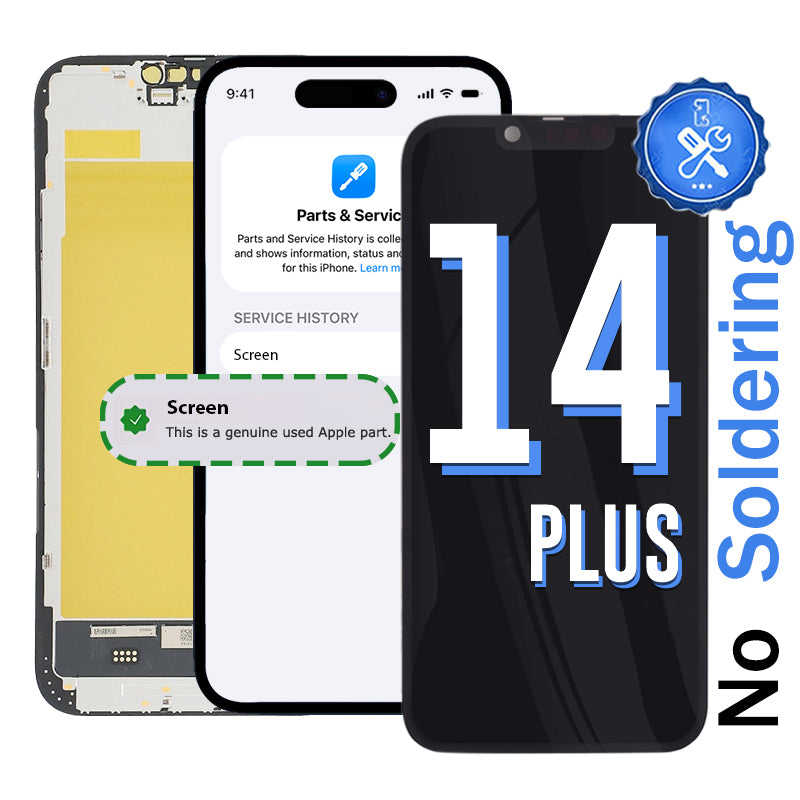

• For a clean pairing, run Repair Assistant (Settings > General > About > Parts and Service History) with the front sensor flex unplugged. Once the screen is paired, power down and plug the sensors in
• Test touch, display, proximity (screen turns off during a call) and Face ID before sealing the phone, and don't peel off the protective film or any stickers until it's all working
• Clean off all the old adhesive with isopropyl alcohol and fit the new screen adhesive supplied in the box to keep dust and moisture out
• Once the repair is finished, turn True Tone on in Settings > Display & Brightness (iOS 18 or later)
