Check out the video above or the step by step guide below for assistance with this repair

iFixit iPhone 8 LCD and Digitizer Replacement Guide

iFixit iPhone SE 2020 Screen Replacement Guide

iFixit iPhone SE 2022 LCD and Digitizer Replacement Guide

Here are some tools you may need to help you complete the repair.

Please note: A discounted simple toolset with the tools you need is available in a pop-up when you add this product to cart

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2, Y000 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• 1mm Tesa Tape 61395 Roll Double Sided Adhesive Tape (50m)
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iGadget Universal Magnetic Work Project Mat with Marker (30cm x 25cm)

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws, they are different lengths: two 3.5mm P2 pentalobe screws at the bottom (3.4mm on the SE 2022), four Phillips on the display cable bracket (two 1.2-1.3mm and two 2.8mm), three 1.2-1.3mm Phillips on the front sensor bracket and four Y000 on the home button bracket. Use a screw mat to keep them in place
• Remove the two pentalobe screws beside the Lightning port, warm the bottom edge and lift the screen with a suction cup just above the home button. Slide picks in no more than 3mm deep, stay out of the right edge (where the display cables run) and don't pry the top edge, which has fragile clips. Lift no more than 15 degrees, slide the screen slightly down to free the clips, then open it like a book from the left side, hinged on the right
• Make sure you always unplug the battery before attempting any component removal. Remove the display cable bracket, disconnect the battery first, then the two display cables and the front sensor cable
• Be careful when transferring your home button from your old screen. Remove the Y000 bracket screws (the shortest screw first, and don't overtighten them on reassembly), warm the bottom edge and use a spudger to gently pry underneath the flex cable to loosen the glue. Touch ID only works with your phone's own home button - if it breaks, you will lose Touch ID and home button features
• iPhone 8 and SE 2020: the metal back plate (LCD shield plate) is already fitted to the new screen, so leave it on. iPhone SE 2022: move your own shield plate across from your old screen. It is held on by small screws only (no adhesive), so undo the screws and lift it straight off. Without the swap the screen won't click in properly
• Carefully transfer the front camera, proximity sensor and earpiece speaker assembly from your old screen, as they are not included with the new screen. Warm the top edge and use a spudger to gently lift the thin flex cable - if it tears, the front camera, earpiece and proximity sensor won't work
• When fitting the new screen, hook the clips along the top edge in first, then press the rest of the screen down
• Test touch, display, home button and Touch ID, front camera, earpiece and proximity before sealing the phone, and don't peel off the protective film or any stickers until it's all working

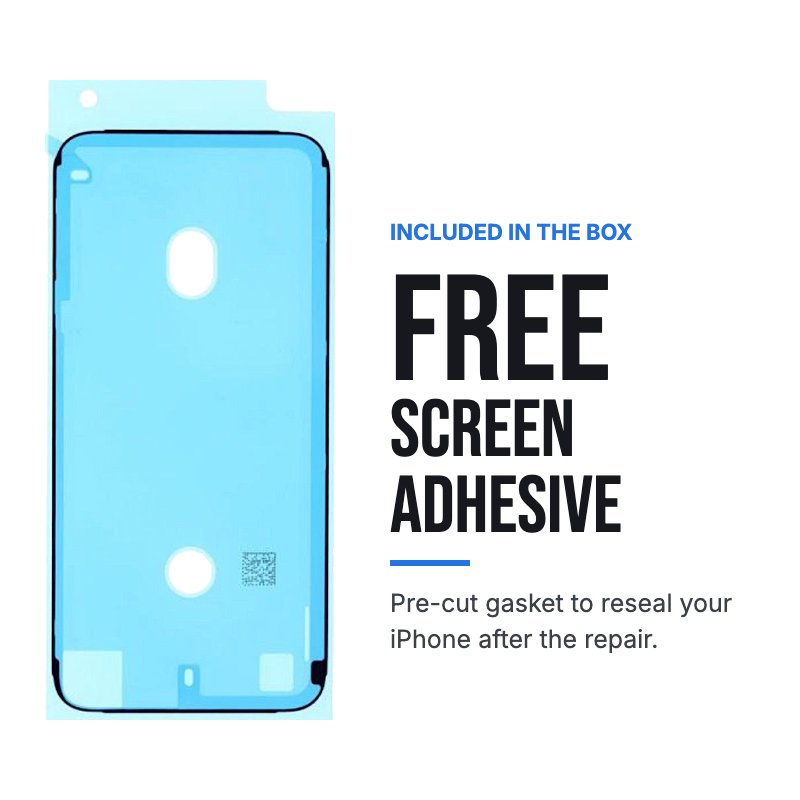

• Opening your iPhone breaks its factory water-resistance seal. Clean off the old adhesive with isopropyl alcohol and fit the new screen gasket adhesive included in the box when you reassemble it.
• Once the repair is finished, turn True Tone on in Settings > Display & Brightness (iPhone SE 2020 and SE 2022 with iOS 18 or later). The iPhone 8 can't run iOS 18, so it needs a True Tone transfer machine to keep True Tone
