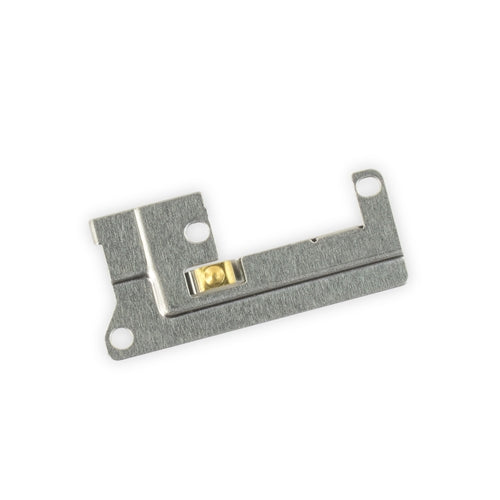

The bracket is fitted as part of the charging port repair. Check out the video above or the step by step guide below for assistance with this repair

iFixit iPhone 6s Plus Lightning Connector and Headphone Jack Replacement Guide

Here are some tools you may need to help you complete the repair.

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2 and #000 screwdrivers, suction cup, tweezers, opening pick and spudger together in our 6 Piece iPhone Repair Toolkit
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iPhone 6s Plus LCD Screen Gasket Adhesive

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Always track your screws to avoid putting back in the wrong place and damaging your device. There are two 3.4mm P2 pentalobe screws at the bottom edge, then Phillips screws of different lengths inside. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• Warm the bottom edge of the screen and lift it with a suction cup at the lower left corner. Start with a spudger in the notch above the headphone jack, work up both sides, then swing the screen up from the bottom no more than 90 degrees and prop it up
• Make sure you always unplug the battery before attempting any component removal. Remove the battery connector bracket (two Phillips screws) and pry the connector straight up off the logic board
• In the iFixit guide the display assembly comes off first, then the bottom antenna cable and the Lightning cable are unplugged from the logic board. The bracket sits over the Lightning port at the bottom edge and comes out after its three Phillips screws (two 3.5mm, one 2.7mm, step 29 of the guide)
• With the bracket off you can reach the antenna cable connector on the Lightning port assembly. Make sure it is clicked in before you fit the new bracket, then refit each screw in the hole it came from
• Before closing the phone, test that it charges, the cable sits firmly in the port and you have mobile signal
• Clean off the old adhesive with isopropyl alcohol and fit new screen adhesive when you close it up
