Product Details

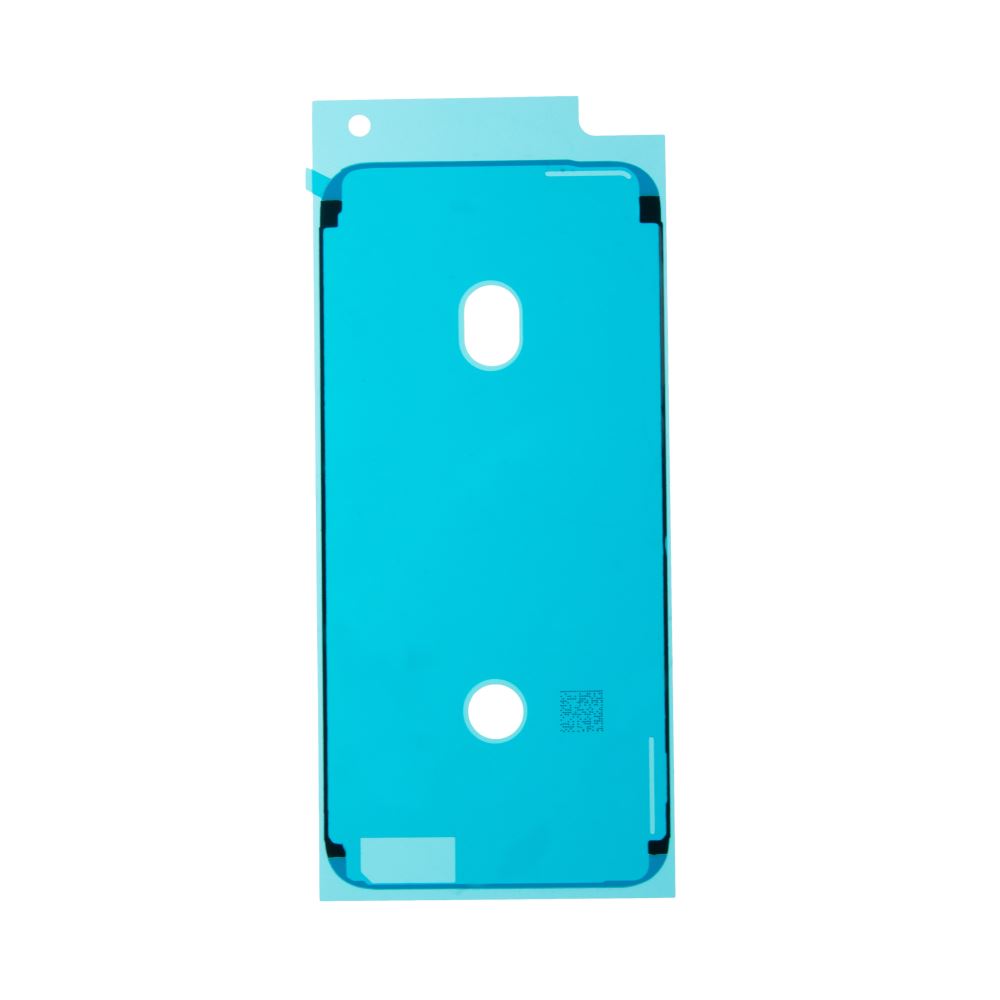

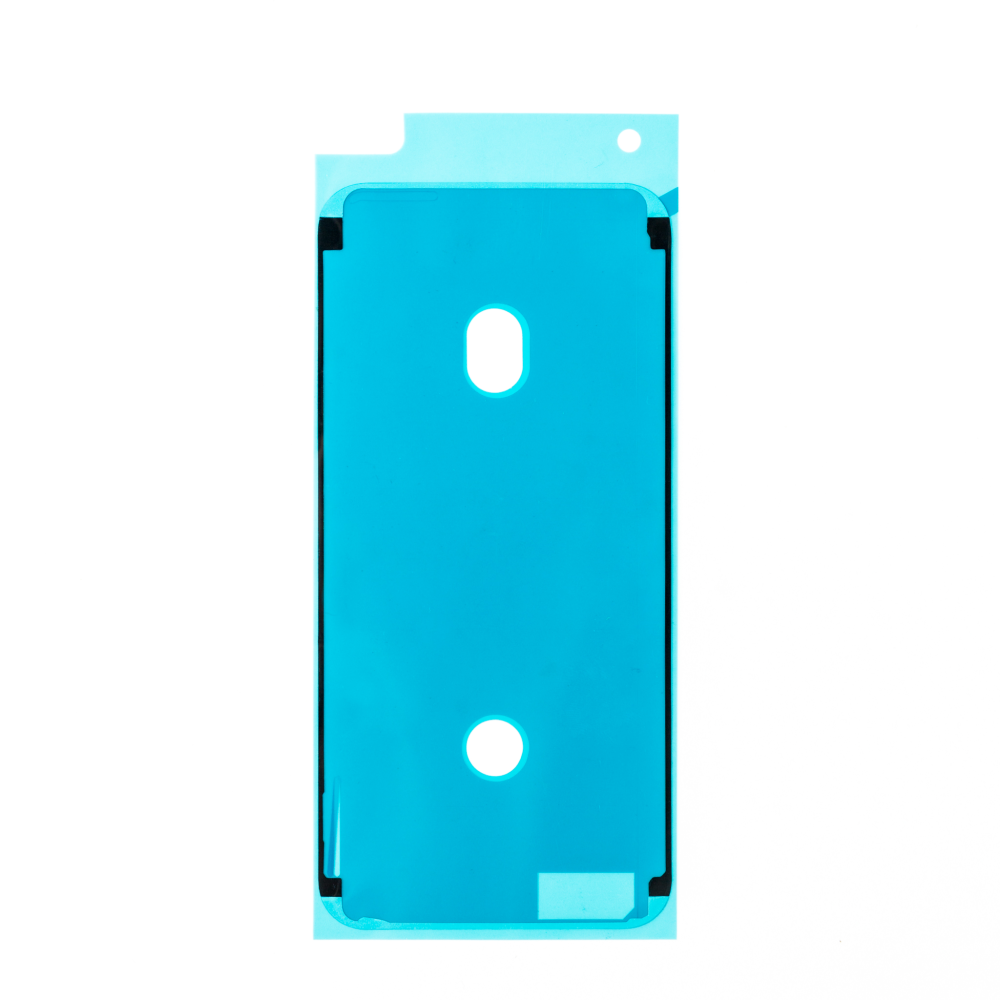

The iPhone 6s Plus OLED Screen Gasket needs replacing if you've opened the phone for a repair. The gasket is in 3 layers like the original gasket replacement. It includes the backing layer, the frame assist layer to help align it corretly, and the edge layer that allows you to plug everything back in before removing the final cover.
Make your installation quick and easy. There is no measuring, cutting, trimming, or shaping needed with these custom cut adhesive strips.
Part Includes:
- 3x Screen Gasket Installation Layers
- 1x Outer backing cover
- 1x Frame assistant layer
- 1x Frame edging cover
Please Note
The top and bottom of the gasket are coloured to match the colour of the screen. While it is not always neccesary to match the colour, it is coloured incase it can be seen after screen installation
Please Note
Replacing the adhesive yourself is not guaranteed to restore the water and dust resistance of your device.
Specifications
- Type: Precut adhesive
- Warranty: 12 Months
Compatible Model Numbers
Model Number (A Number)
- A1634
- A1687
- A1699
iPhone 6s Plus Model Numbers
Model Identifier
- iPhone8,2
EMC Number
- EMC 2944
Device Number (M Number)
- MKTM2
- MKTR2
- MKTW2
- MKTN2
- MKTT2
- MKTX2
- MKTL2
- MKTQ2
- MKTV2
- MKTP2
- MKTU2
- MKTY2
- MKW62
- MKWC2
- MKWG2
- MKW72
- MKWD2
- MKWH2
- MKW52
- MKW92
- MKWF2
- MKW82
- MKWE2
- MKWJ2
- MKVP2
- MKVW2
- MKW12
- MKVQ2
- MKVX2
- MKW22
- MKVN2
- MKVV2
- MKW02
- MKVU2
- MKVY2
- MKW32
- MKV52
- MKV92
- MKVG2
- MKV62
- MKVD2
- MKVH2
- MKV32
- MKV82
- MKVF2
- ML6C2
- ML6G2
- ML6L2
- ML6D2
- ML6H2
- ML6M2
- ML6A2
- ML6F2
- ML6K2
- ML6E2
- ML6J2
- ML6N2
- MN3R2
- MN3T2
- MN3Q2
- MN3U2
Installation Help
Watch the video above or checkout the step-by-step guide below as they contain removal of the battery adhesive
iFixit iPhone Display Gasket Replacement Guide
Here is some tools you may need to help you complete the repair.
- Phillips #000 Screwdriver
- P2 Pentalobe Screwdriver
- iSclack opening tool
- Suction Cup
- Fine Tipped Curved Tweezers
- iGadget 5 piece opening picks
- Black Spudger
- uFix iOpener Heat bag
- iHold Evo Screen Holder
Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any quesions, please feel free to contact us either by phone (0508 IGADGET) or by email
- Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
- Always power down your device prior to working on it
- Make sure you always unplug the battery before attemping any component removal
- It is important to remove all left over adhesive residue before installing the new one. We recommend using isopropyl alcohol wipes or liquid with a cotton bud
- Use a spudger to push the edges down to make it stick correctly before removing the backing
Whats In The Box
- 1x iPhone 6s Plus Replacement Screen Gasket
