DIY DIFFICULTY
ModerateAbout 30 to 45 minutes
Held in by two stretch-release strips under the screen. The screen swings up from the bottom and comes off first.

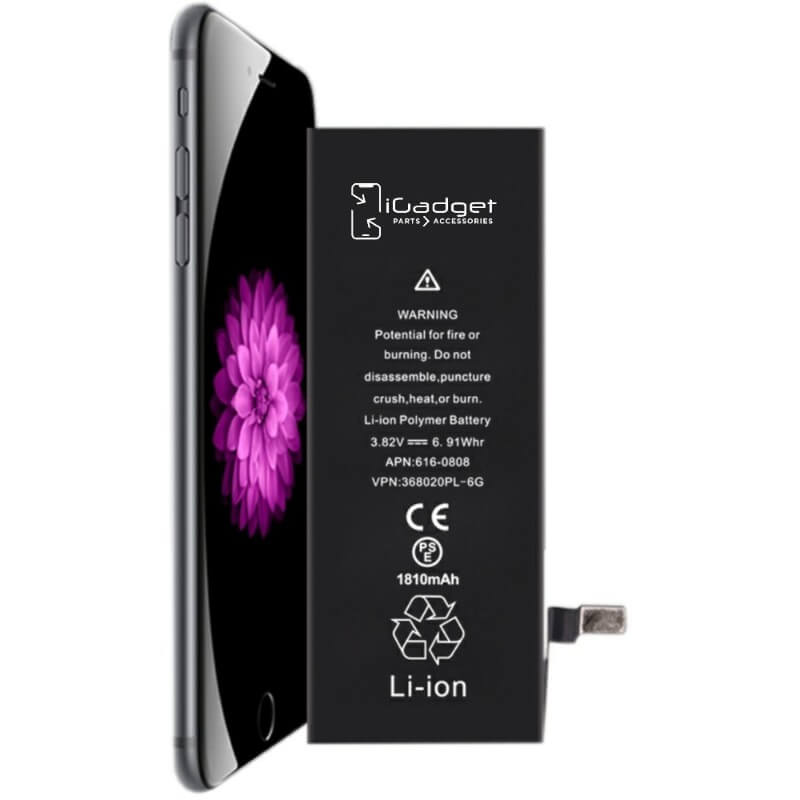

- Premium 1810mAh zero-cycle battery with a Texas Instruments fuel gauge chip, battery adhesive included
- Replaces a battery that drains fast, won't hold a charge, shuts down early or shows a Service message
- Compatible with iPhone 6 models: A1549, A1586 and A1589
Frequently Bought Together
Frequently Bought Together
Product Details
Is your iPhone 6 draining fast, shutting down early, not turning on or showing a Service message in Battery Health? A worn battery is usually the cause. This is a new 1810mAh replacement (Apple part 616-0809).
- TEXAS INSTRUMENTS FUEL GAUGE CHIP - The same brand of chip Apple uses, reporting temperature, voltage and charge to your iPhone.
- NO SURPRISE SHUTDOWNS - Accurate readings help your iPhone charge safely, stop at full and show a true percentage, so no sudden drops or early shutdowns like low-grade chips cause.

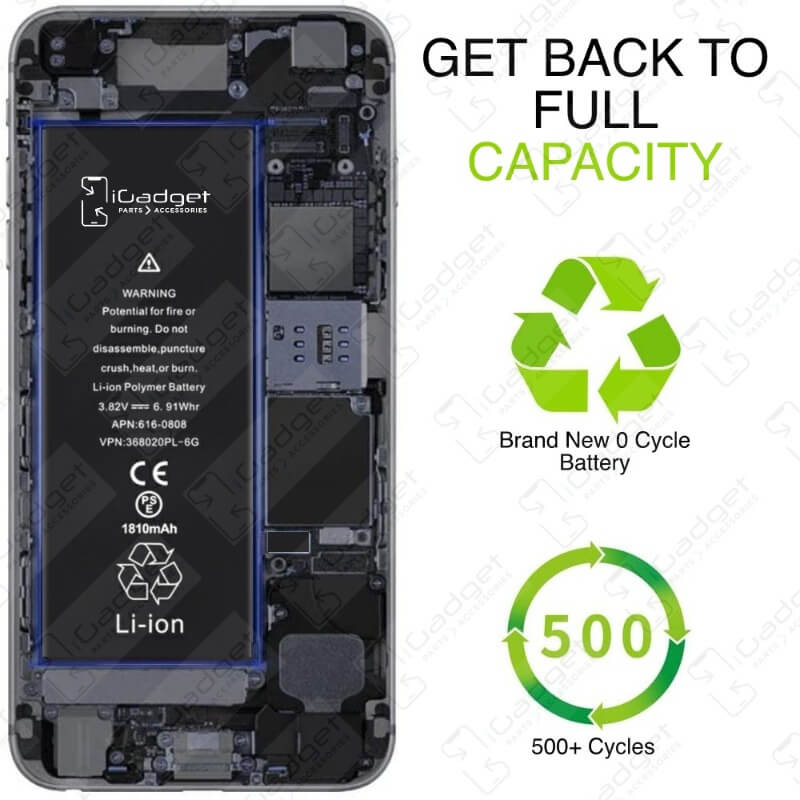

- ZERO CYCLE CELL - A brand new cell, never used in a phone, so you start with its full life.
- FULL 1810mAh CAPACITY - Rated at 1810mAh, the same as the battery Apple fitted to the iPhone 6.

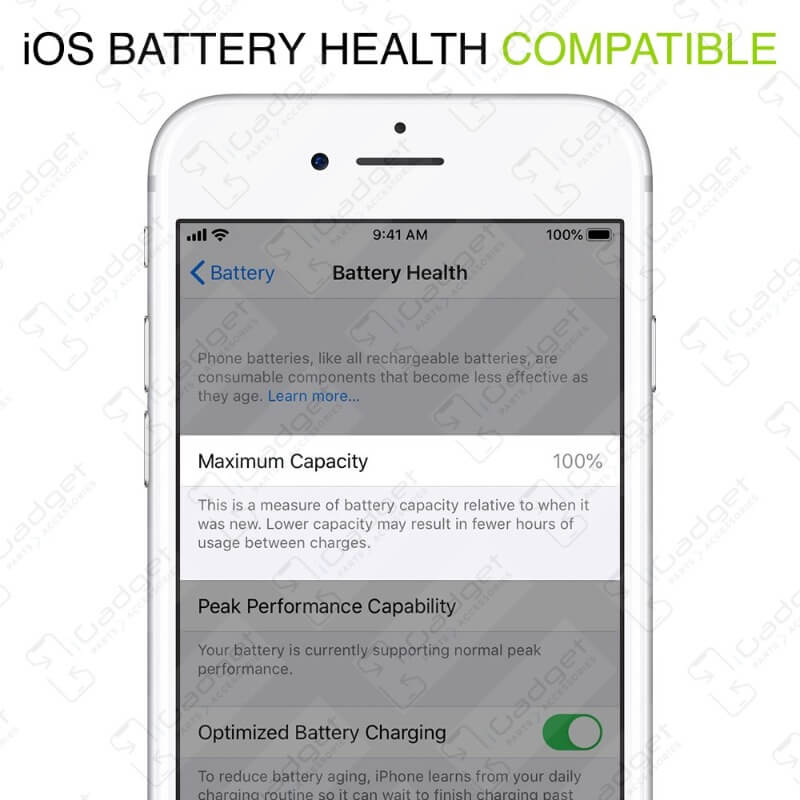

- BATTERY HEALTH SHOWS - Settings shows the new battery's Battery Health and maximum capacity, so you can keep an eye on it.
- SENT FROM NZ STOCK - Shipped from our New Zealand stock, so there's no waiting weeks for a part to arrive from overseas.
Part Includes:
- iPhone 6 Replacement Battery
- Battery Adhesive Strips
- 12 Month Warranty
Please Note
Does NOT fit the iPhone 6s, 6 Plus or 7. Check in Settings, General, About for your model.
Please Note
New stretch-release adhesive strips with pull tabs come in the box, so the battery sits secure and can come out cleanly next time.
Please Note
Aftermarket battery, not an official Apple part. It works just like the original.
Specifications
- Compatible Part Numbers: 616-0804, 616-0805, 616-0806, 616-0807, 616-0808, 616-0809
- Voltage: 3.82V
- Watt Hours: 6.91Whr
- Capacity: 1810mAh
- Chipset: Texas Instruments
- Battery Type: Lithium-ion polymer
- Condition: Brand new cell
- Pairing: Not needed. No battery pairing message on the iPhone 6.
- Warranty: 12 Months
How do I find my Model number?
iPhone 6
Compatible Model Numbers
iPhone 6Model Number (A Number)
- A1549
- A1586
- A1589
iPhone 6 Model Numbers
Model Identifier
- iPhone7,2
EMC Number
- EMC 2816
Device Number (M Number)
- MG3A2
- MG3C2
- MG3D2
- MG3E2
- MG3F2
- MG3G2
- MG3H2
- MG3K2
- MG3L2
- MG472
- MG482
- MG492
- MG4A2
- MG4C2
- MG4E2
- MG4F2
- MG4H2
- MG4J2
- MG4N2
- MG4P2
- MG4Q2
- MG4R2
- MG4V2
- MG4W2
- MG4X2
- MG502
- MG542
- MG552
- MG562
- MG5A2
- MG5C2
- MG5H2
- MG5W2
- MG5X2
- MG5Y2
- MG602
- MG622
- MG632
- MG642
- MG652
- MG692
- MG6A2
- MG6C2
- MG6G2
- MG6H2
- MG6J2
- MG7W2
- MG822
- MG842
- MQ3D2
- MQ3E2
- MQ462
- MG4U2
- MG572
- MG582
- MG592
- MG5D2
- MG612
- MG6D2
- MG6E2
- MG6F2
More info Less info
Installation Help
Check out the video above or the step by step guide below for assistance with this repair
iFixit iPhone 6 Battery Replacement Guide
Remember
After completing your repair, calibrate your newly installed battery by charging it to 100% and then charging for a further two hours. Use your iPhone until it shuts off due to low battery, and finally, charge it uninterrupted to 100% again
Here are some tools you may need to help you complete the repair.
Please note: A discounted simple toolset with the tools you need is available in a pop-up when you add this product to cart
- P2 Metal Pentalobe 0.8mm Screwdriver Tool
- #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
- Large Blue Suction Cup Opening Tool
- Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
- iGadget Plastic Triangle Opening Picks (set of 5)
- 5x iGadget Plastic Flexible Opening Cards
- Nylon Antistatic Spudger Pry Tool
- Or get the P2 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
- iGadget Plastic Alcohol 200mL Bottle with Pump Top
- iGadget Universal Magnetic Work Project Mat with Marker (30cm x 25cm)
Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email
- Drain the battery below 25% and power the phone off before you start. A charged lithium-ion battery can catch fire if it's punctured or damaged
- Remove the pentalobe screws either side of the Lightning port. Press a suction cup on the screen above the home button, pull up gently and work an opening pick or plastic card around the bottom and sides to release the clips
- The screen hinges at the top on its clips. Swing it up from the home button end and prop it at no more than 90 degrees, as its cables are still connected at the top
- Track your screws on a magnetic mat or tape them to a drawing of your phone. They're different lengths, and a long screw in a short hole can damage the logic board
- Always unplug the battery before you remove any other parts. Keep metal tools away from the battery, and never bend, crush or puncture it.
- Remove the battery connector bracket (Phillips) and unplug the battery, then the display cable bracket (Phillips). Unplug the front camera, home button, display and digitiser cables and lift the screen off. Refit the digitiser cable by pressing on one side first, never pressing the middle
- Two stretch-release strips hold the battery. Peel the black tabs back and pull it slowly towards the bottom of the phone, low and flat; winding it around your tweezers. Hold the battery as you pull. If a strip breaks, drip isopropyl alcohol under that edge, wait a minute, then lift the battery slowly with a plastic card. Never pry between the volume button and battery

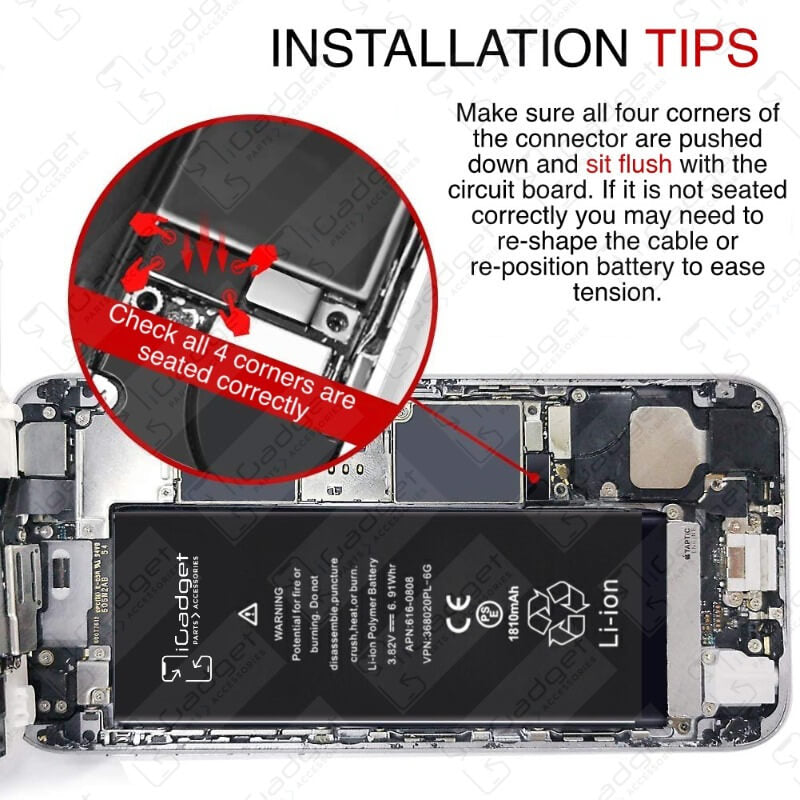

- Clean off any old adhesive and fit the new adhesive strips from the box. Press the battery connector down until it clicks, then check the phone powers on and charges before you seal it up
- If the new battery drains fast or shuts off, reseat the battery connector, check it for foam or debris and make sure the flex isn't strained, then do a force restart
Caution
If the new battery or the battery in your device is swollen or damaged during repair, take the proper precautions
Note
You cannot dispose of old batteries in your general waste. Find recycling e-waste centres online or take to your local refuse station.
What's In The Box
- 1x iPhone 6 Replacement Battery
- 1x Replacement Battery Adhesive
