Check out the video above or the step by step guide below for assistance with this repair

iFixit iPhone 16 Plus Screen Replacement Guide

Here are some tools you may need to help you complete the repair.

Please note: A discounted simple toolset with the tools you need is available in a pop-up when you add this product to cart

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2 and Y000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• 1mm Tesa Tape 61395 Roll Double Sided Adhesive Tape (50m)
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iGadget Universal Magnetic Work Project Mat with Marker (30cm x 25cm)

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it. The battery can't be disconnected from the front on the iPhone 16 Plus, so use only plastic tools near the connectors and don't touch exposed contacts
• Track your screws on a screw mat or tape them to a drawing of your phone. This repair uses two 7.7mm pentalobe screws, two 0.9mm Y000 tri-point screws and one 1.3mm Phillips screw. Keep them apart so each goes back in the right place
• Remove the two 7.7mm pentalobe screws either side of the USB-C port, then heat the bottom edge to soften the adhesive. Don't overheat it - the battery is heat-sensitive
• The screen opens from the right-hand side like a book - the two display cables are on the left. Slide the pick under the plastic bezel on the back of the screen, not into the seam between the bezel and the panel, and no deeper than 3mm on any edge
• Remove the two connector covers (one 0.9mm Y000 tri-point screw each), then disconnect the screen connector first and the front sensor connector second. When reconnecting, press each one until it clicks and hook the covers back into their slots at an angle
• Transfer the ambient light sensor from your old screen - the earpiece and Face ID camera stay in the phone; don't touch them. Remove its bracket (one 1.3mm Phillips screw), warm the area, lift it with a spudger or opening card and re-stick it in the new screen's recess with Tesa tape. If damaged, auto-brightness stops working
• Test touch, display, auto-brightness and Face ID before sealing the phone, and don't peel off the protective film or any stickers until it's all working

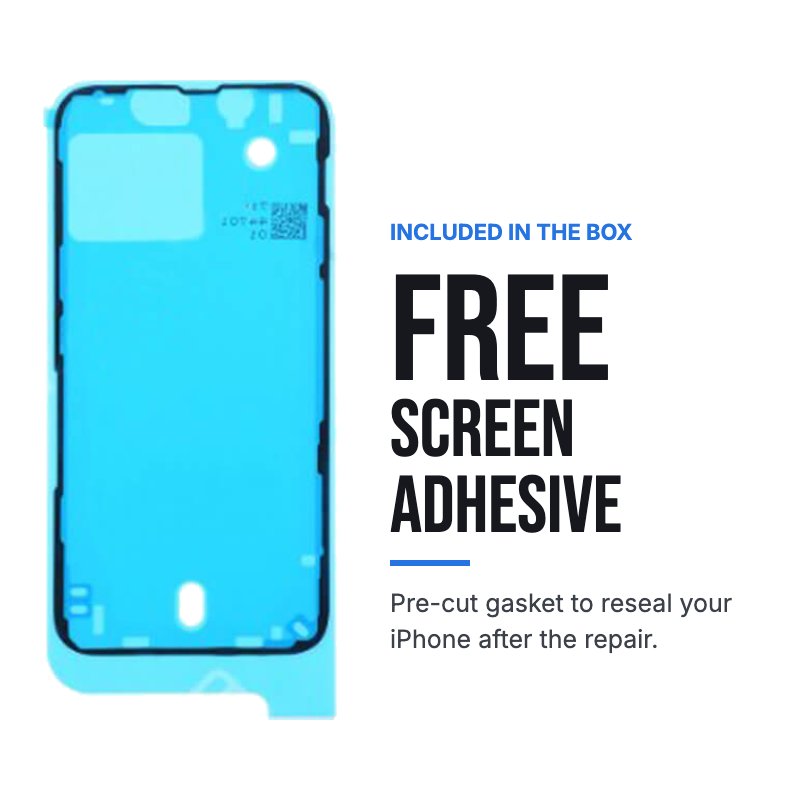

• Clean off all the old adhesive with isopropyl alcohol and fit the new screen adhesive supplied in the box to keep dust and moisture out. Press or clamp the screen for at least 30 minutes
• This screen supports IC transfer - a micro-soldering specialist can move the display IC from your old screen onto this one.
• Once the repair is finished, turn True Tone on in Settings > Display & Brightness and check auto-brightness is working (iOS 18 or later)
