Check out the video above or the step by step guide below for assistance with this repair

iFixit iPhone 16 Plus Screen Replacement Guide

Here are some tools you may need to help you complete the repair.

Please note: A discounted simple toolset with the tools you need is available in a pop-up when you add this product to cart

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2 and Y000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• 1mm Tesa Tape 61395 Roll Double Sided Adhesive Tape (50m)
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iGadget Universal Magnetic Work Project Mat with Marker (30cm x 25cm)

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws, they are different types and lengths: two 7.7mm P2 pentalobe screws beside the USB-C port, one 0.9mm Y000 on each of the two connector covers, and one 1.3mm Phillips on the ambient light sensor bracket. Use a screw mat to keep them in place
• Remove the two pentalobe screws beside the USB-C port, warm the bottom edge (not too hot, the battery is heat-sensitive) and lift the screen with a suction cup. Slide picks under the plastic bezel on the back of the screen, not into the seam between the bezel and the panel, and no more than 3mm deep on any edge. The screen opens like a book from the right side, hinged on the left where the two display cables run
• The battery can't be disconnected from the front on the iPhone 16 Plus, so keep the phone powered off and use only plastic tools near the board. Disconnect the display cable first, then the front sensor cable, each under a small cover, and hook both covers back into their slots on reassembly
• Carefully transfer the ambient light sensor from your old screen - remove its bracket, warm the area and use a spudger to gently lift the sensor and its flex cable, then re-stick it to the new screen with Tesa tape. Face ID and the earpiece stay in the phone, so don't touch the TrueDepth camera at the top of the frame. Watch the video above before attempting removal
• Test touch, display, earpiece, proximity and Face ID before sealing the phone, and don't peel off the protective film or any stickers until it's all working

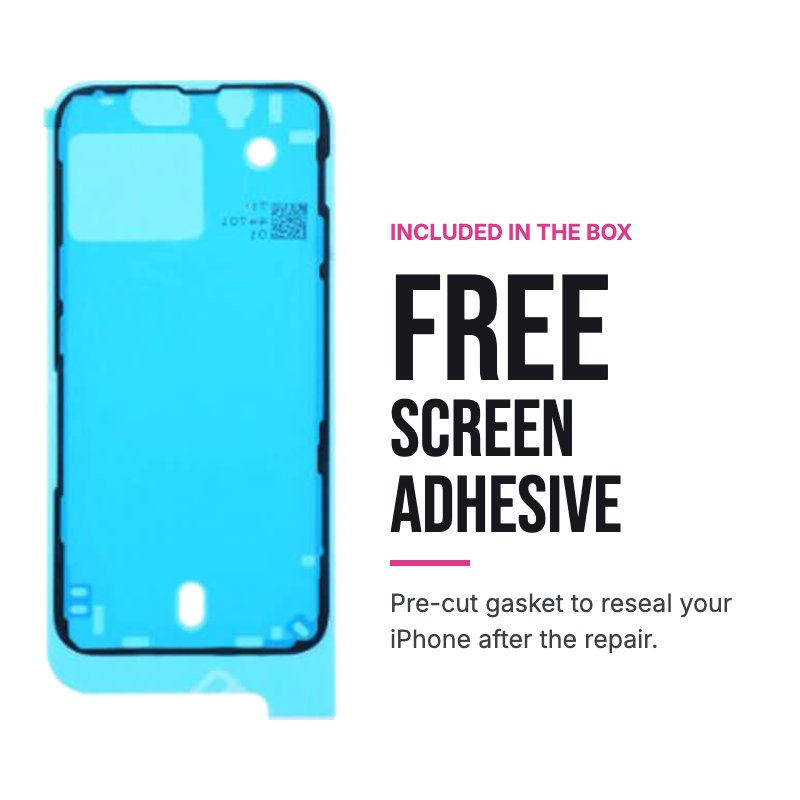

• Opening your iPhone 16 Plus breaks its factory water-resistance seal. Clean off the old adhesive with isopropyl alcohol and fit the new screen gasket adhesive included in the box when you reassemble it.
• This screen supports IC transfer - a micro-soldering specialist can move the display IC from your old screen onto this one
• Once the repair is finished, turn True Tone on in Settings > Display & Brightness (iOS 18 or later)
