Check out the video above or the step by step guide below for assistance with this repair

iFixit iPhone 14 Pro Max Screen Replacement Guide

Here are some tools you may need to help you complete the repair.

Please note: A discounted simple toolset with the tools you need is available in a pop-up when you add this product to cart

• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2, Y000 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• 1mm Tesa Tape 61395 Roll Double Sided Adhesive Tape (50m)
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iGadget Universal Magnetic Work Project Mat with Marker (30cm x 25cm)

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws on a screw mat or tape them to a drawing of your phone. The battery and display connector cover uses Y000 screws in three lengths (1.3mm, 1.6mm and 1.9mm) - a long screw in a short hole can damage the logic board
• Remove the two pentalobe screws beside the Lightning port, then heat the bottom edge to soften the adhesive
• The screen opens from the right-hand side like a book - the display cables are on the left. Insert picks no deeper than 3mm, and no deeper than 2mm along the left edge
• Always unplug the battery before you remove any other parts. Keep metal tools away from the battery, and never bend, crush or puncture it.
• Disconnect the battery before unplugging the two display cables

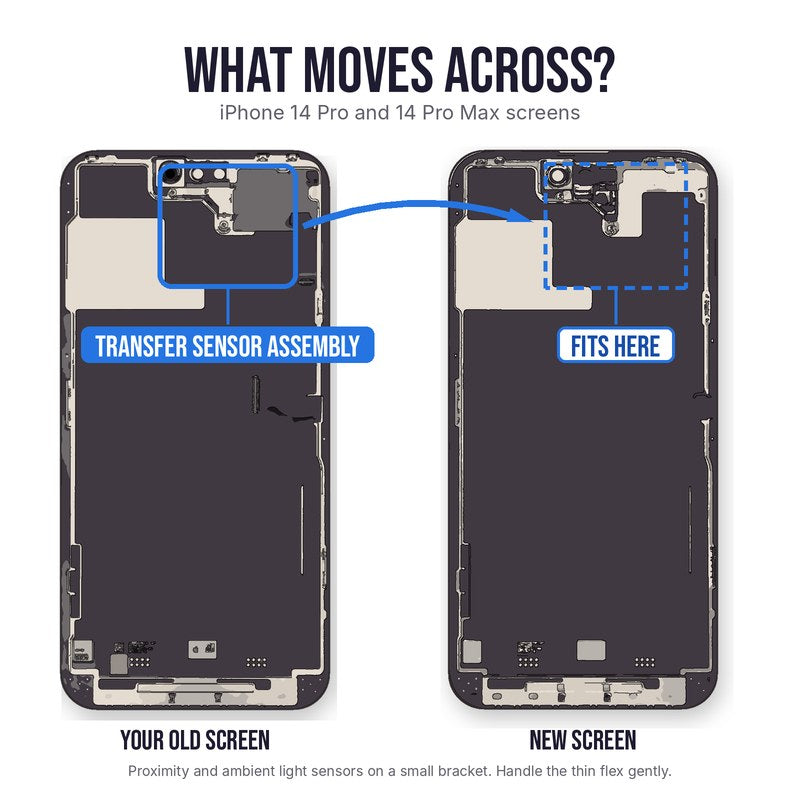

• Transfer the sensor flex (proximity and ambient light sensor) from your old screen: remove its bracket (two Phillips screws), warm the area, gently pry it up with a spudger or opening card and re-stick with Tesa tape. A broken cable loses Face ID features
• Test touch, display, proximity (screen turns off during a call) and Face ID before sealing the phone, and don't peel off the protective film or any stickers until it's all working
• Clean off all the old adhesive with isopropyl alcohol and fit the new screen adhesive supplied in the box to keep dust and moisture out
• This screen supports IC transfer - a micro-soldering specialist can move the display IC from your old screen onto this one.
• Once the repair is finished, turn True Tone on in Settings > Display & Brightness and check auto-brightness is working (iOS 18 or later)
