DIY DIFFICULTY
ModerateAbout 1 to 2 hours
Glued back glass comes off first. The board, sub-board and battery move to the new frame.
- Samsung A36 screen replacement: IC3 in-cell LCD with the middle frame pre-installed
- Fixes a cracked screen, black display, lines or touch not responding
- Compatible with Samsung Galaxy A36 5G models; SM-A366B, SM-A366B/DS, SM-A366E, SM-A366E/DS
Frequently Bought Together
Frequently Bought Together
Product Details

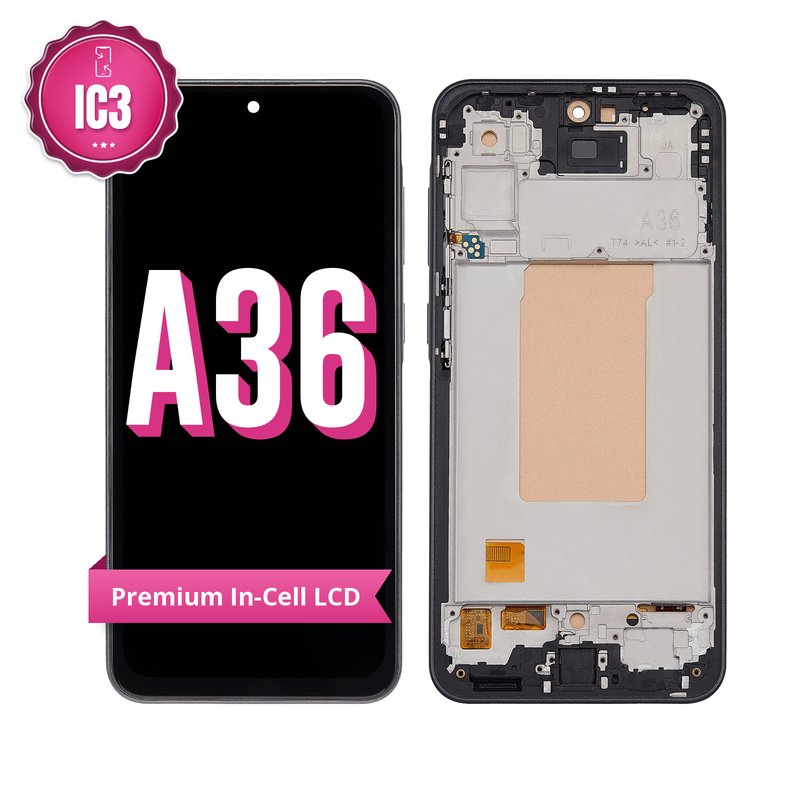

Cracked your Samsung A36 screen, or is the display black, showing lines, or no longer responding to touch? This is an IC3 in-cell LCD and digitiser assembly for the Galaxy A36 5G (SM-A366B), with a new middle frame already fitted.
- FRAME PRE-INSTALLED, LESS RISK - The middle frame comes fitted, so there's no heating and prying a glued screen off your old frame, the step where most DIY screen repairs go wrong.
- COST EFFECTIVE - A much cheaper alternative to an original OLED screen, in the same 6.7" size as the A36's original display.
- IN-CELL TECHNOLOGY - The LCD and touch layer are built into one panel, so touch is fast and responsive with no gap behind the glass.
- PRECISE FIT - The punch-hole camera cutout, brackets and screw points line up with the original, so the screen sits flush and your phone closes up properly.
- SENT FROM NZ STOCK - Shipped from our New Zealand stock, so there's no waiting weeks for a part to arrive from overseas.
Part Includes:
- Samsung Galaxy A36 5G IC3 in-cell LCD and touch digitiser

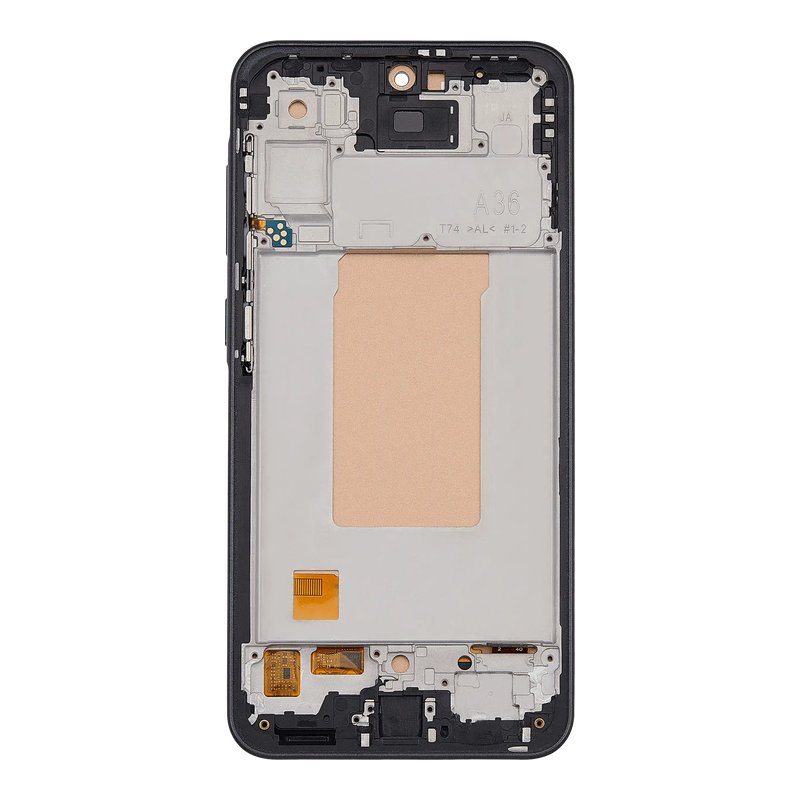

- Middle frame (pre-installed)
- 12 Month Warranty
Please Note

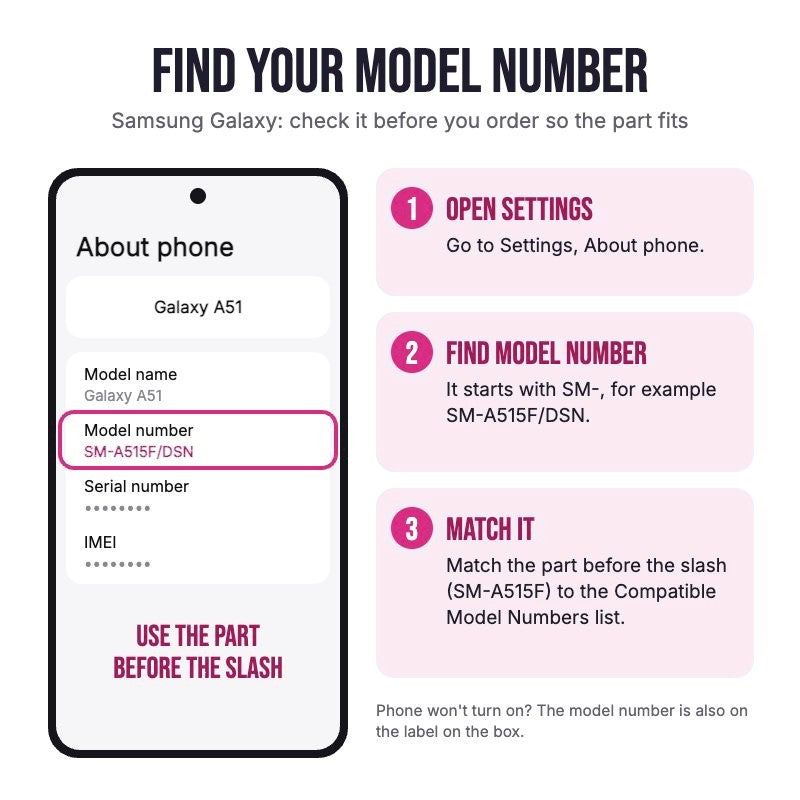

Does NOT fit the A35, A56 or A26, which look similar. Not confirmed for US models (SM-A366U, U1, W). Check in Settings, About phone for your model.
Please Note

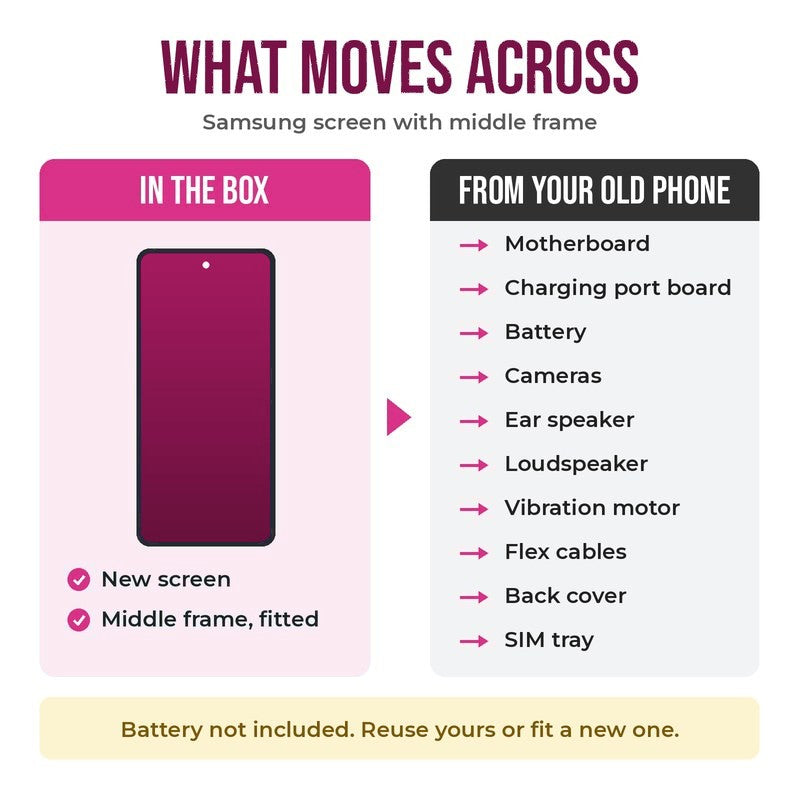

Your board, sub-board and battery move across to the new frame. The battery is not included.
Please Note
Aftermarket in-cell LCD, not an official Samsung part. The in-screen fingerprint reader won't work with it, and it runs at 60Hz, not the original's 120Hz.
Specifications
- Screen Type: In-Cell LCD (aftermarket)
- Display Size: 6.7"
- Refresh Rate: 60Hz
- Notch: Centre punch hole
- Fingerprint: In-display fingerprint not supported
- Middle Frame: Pre-installed
- Colours: Black
- Battery: Not included
- Warranty: 12 Months
Compatible Model Numbers
Samsung Galaxy A36 5GModel Number (SM Number)
- SM-A366B
- SM-A366B/DS
- SM-A366E
- SM-A366E/DS
Installation Help
Check out the video above for assistance with this repair
Here are some tools you may need to help you complete the repair.
- #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
- Large Blue Suction Cup Opening Tool
- uFix iOpener Microwaveable Heated Bag Opening Tool
- iGadget 5 piece opening picks
- 5x iGadget Plastic Flexible Opening Cards
- iPlastix Flexible Opening Tool by Dottorpod
- Nylon Antistatic Spudger Pry Tool
- Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
- Box of Isopropyl Adhesive Cleaning Alcohol Pad Wipes x100
- 2mm Tesa Tape 61395 Roll Double Sided Adhesive Tape (100m)
Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email
- Drain the battery below 25% before you start on this repair
- Power the phone off and take out the SIM tray before you open it.
- The back glass is glued on. Warm the edges gently with the iOpener in short bursts, as too much heat can damage the battery, then lift an edge with the suction cup and work a pick around no more than 3 to 5mm in, or you can cut the antenna, side key or camera cables.
- Always track your screws (Phillips #00) so they go back in the right place. Draw a picture of your phone and tape the screws to it, or use a screw mat
- Always unplug the battery before you remove any other parts. Keep metal tools away from the battery, and never bend, crush or puncture it.
- Move the motherboard, sub-board, cameras and flex cables from your old frame into the new one. The battery is not included: lift it out by its pull tabs, or loosen any adhesive with isopropyl alcohol and lift it slowly with a plastic card, never prying against the cell, or fit a new battery.
- The in-screen fingerprint reader won't work with an in-cell LCD, so delete your saved fingerprints before you start and use face, PIN or pattern unlock afterwards.
- Test the display, touch, cameras and calls before you seal the back, and leave the protective film and stickers on until the new screen is working properly.
- Opening the phone breaks the factory seal. Fit new adhesive (a strip of 2mm Tesa tape where the old adhesive was) when you close it up, or the phone will lose its IP67 water resistance.
What’s In The Box
- 1x Samsung Galaxy A36 5G IC3 In-Cell LCD Screen Replacement with Middle Frame
