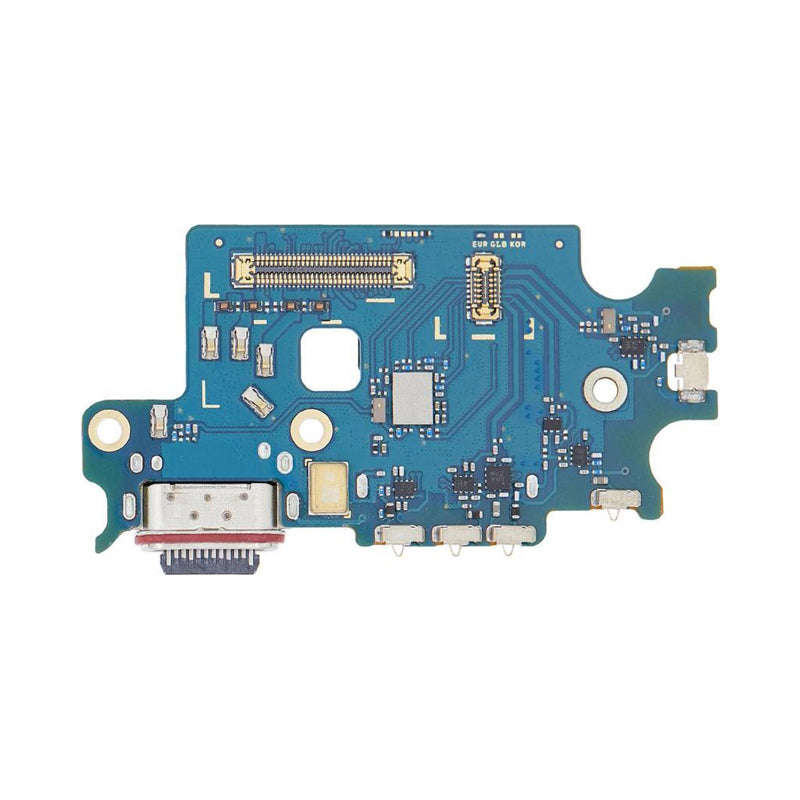

Samsung Galaxy S22 Plus USB-C Port and Charging Board Replacement Guide

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Heat Bag
• Suction Cup
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• Black Spudger
• Fine Tipped Curved Tweezers
• Isopropyl Adhesive Cleaning Alcohol Pad Wipes
• 4mm Tesa Tape 61395 Double Sided Adhesive Tape

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Take the SIM card tray out before you start. The SIM card reader is on the charging port board, so the board can't come out with the tray still in and you can bend the reader pins.
• Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• The back glass is glued on. Warm each edge with the iOpener in short bursts, lift it with the suction cup and slice the adhesive with opening picks. Do not overheat the phone, as heat damages the screen and the battery.
• Only push an opening pick a few millimetres past the edge. Any deeper and you can cut the power button cable or damage the rear cameras.
• The NFC and wireless charging coil and the loudspeaker have to come out to reach the charging port board. Do not tear the coil's cables, and press its connectors back down until they click.
• Make sure you always unplug the battery before attempting any component removal
• The board connects to the main board with interconnect cables. Unclip both ends with a spudger, and when refitting reconnect every flex and aerial (coaxial antenna) cable you unplugged, pressing each connector down until it clicks, or the phone may lose charging or signal.
• Power on and test charging, the SIM and the microphone before you seal the back.
• Opening the phone breaks the factory seal. Clean off the old adhesive with alcohol and fit new adhesive when you close it up, or the phone will lose its water resistance rating.
