Check out the video above or the step by step guide below for assistance with this repair

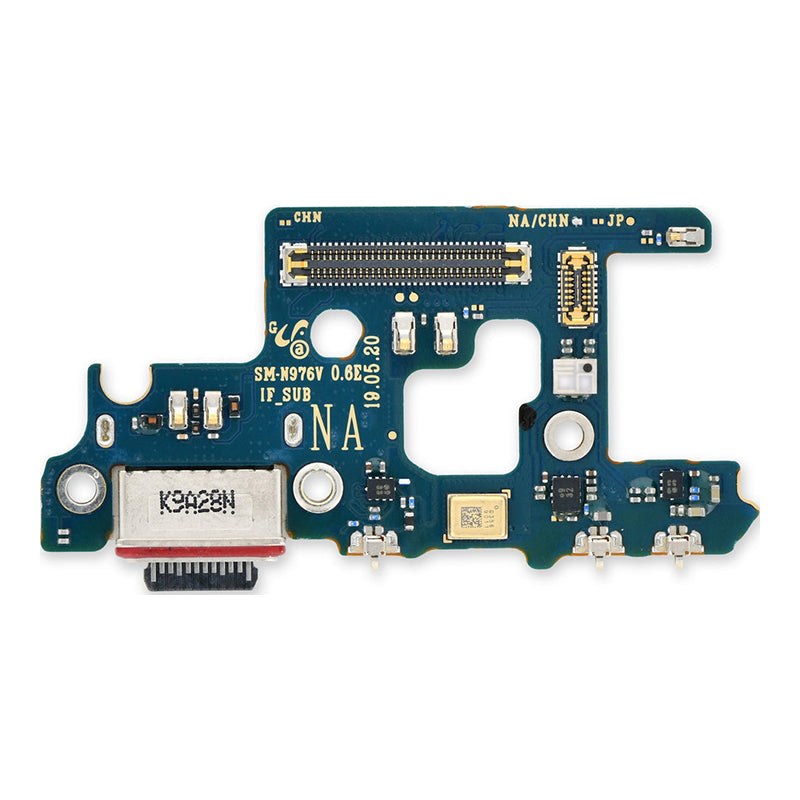

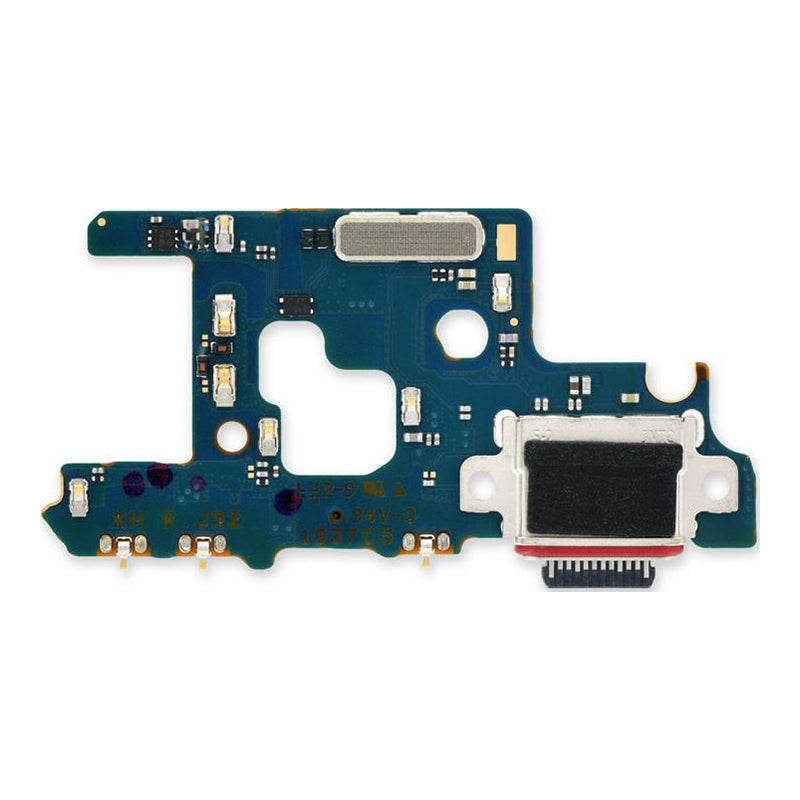

Samsung Galaxy Note10+ Daughterboard Replacement Guide

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Heat Bag
• Suction Cup
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• Black Spudger
• Fine Tipped Curved Tweezers
• Isopropyl Adhesive Cleaning Alcohol Pad Wipes
• 4mm Tesa Tape 61395 Double Sided Adhesive Tape

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it, and take the S Pen out first
• Always track your screws to avoid putting back in the wrong place and damaging your device. The wireless charging plate, loudspeaker and board are held by 4mm #00 Phillips screws. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• The back glass is glued on. Warm each edge with the iOpener in short bursts, lift it with the suction cup and slice the adhesive with opening picks. Do not overheat the phone, as heat damages the screen and the battery.
• Only push an opening pick 4 to 5mm past the edge. Any deeper and you can cut the antenna cable, the power button cable or the rear cameras.
• Make sure you always unplug the battery before attempting any component removal. Its connector sits under a small metal shield once the wireless charging plate screws are out.
• The NFC and wireless charging plate and the loudspeaker have to come out to reach the charging port board. Do not tear the plate's cable, and press its connectors back down until they click.
• Unclip the main and secondary interconnect cables at both ends with a spudger, then pivot the board out of its recess. When refitting, press each connector back down until it clicks, or the phone may lose charging, signal or the microphone.
• Power on and test charging and the microphone before you seal the back.
• Opening the phone breaks the factory seal. Clean off the old adhesive with alcohol and fit new adhesive when you close it up, or the phone will lose its water resistance rating.
