Product Details
This MacBook Pro 13" (2016-2022) replacement battery is what you need to bring your dead laptop back to life!
Battery degradation is an inevitable part of your MacBook Pro's lifespan. If your laptop won't turn on, turns off suddenly, has a "service battery" warning, has had water damage or simply won't hold a charge, this MacBook Pro battery replacement may be what you need to fix it.
It suits the 13-inch MacBook Pro with two Thunderbolt 3 (USB-C) ports: the A1708 from Late 2016 and 2017, the A2159 from 2019, the A2289 from 2020 and the A2338 with the Apple M1 (2020) or M2 (2022) chip. It replaces battery models A1713 and A2171.
Don't be let down by poor quality cheap batteries. Our high quality aftermarket battery is built with a Pure Cobalt battery cell, safety chipsets and high grade cabling to give you years of trouble free charging.

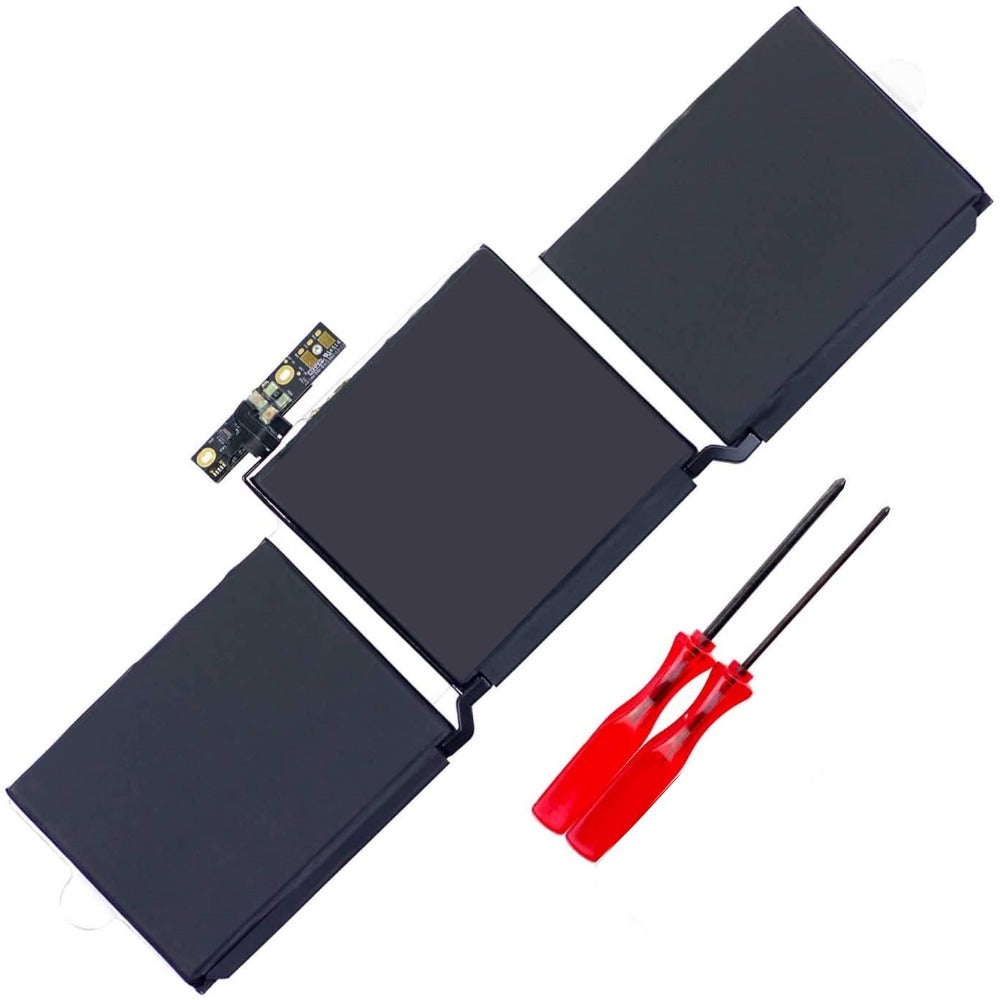

The battery comes as one pack of three cell blocks with its control board and flex already attached. Fitting it is a moderate to difficult job, as the cells are glued in and the trackpad has to come out first, so watch the video and follow the step by step guide in Installation Help before you start.
Part Includes:
- Pure Cobalt Battery Cell

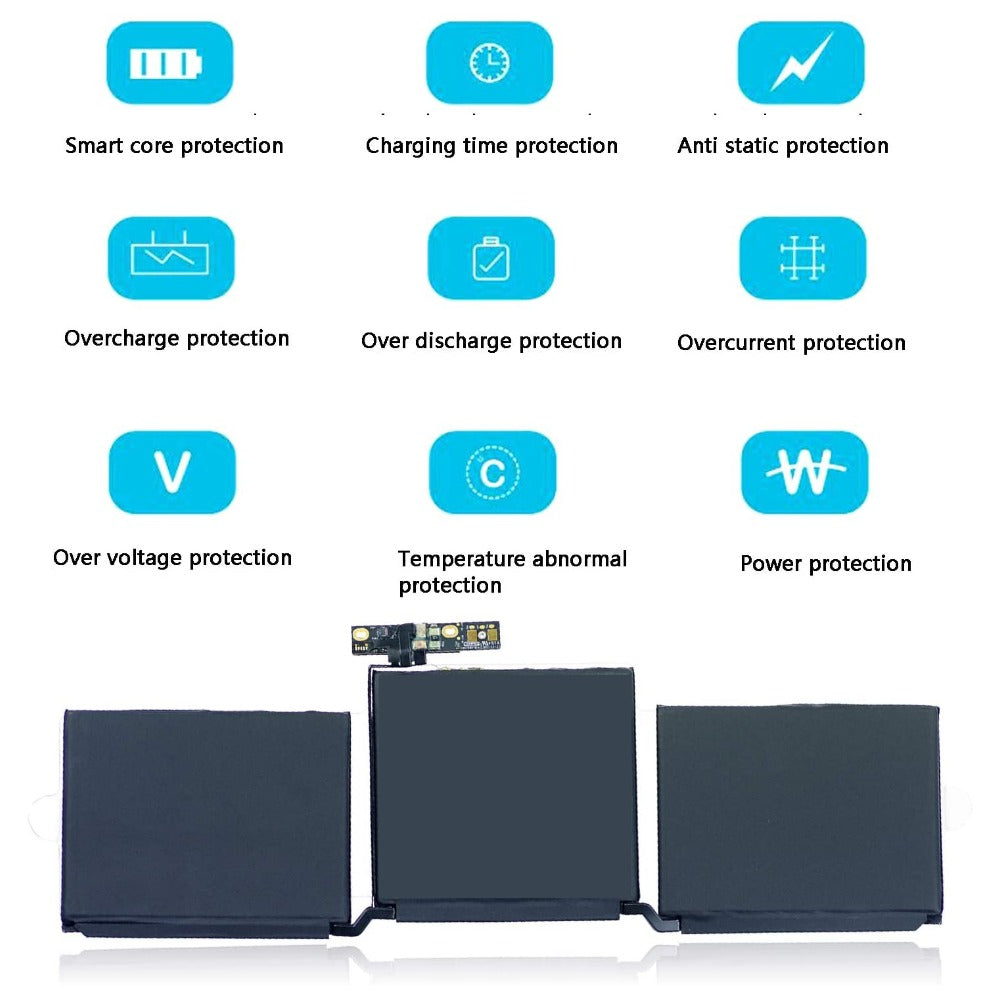

- Safety chipsets and PCB board
- High Grade cabling and connectors
- 12 Month Warranty
Please Note
Does NOT fit the four-port models (A1706, A1989, A2251). Check the A-number on the bottom case for your model.
Please Note
Fits A1708 (2016-2017), A2159 (2019), A2289 (2020) and A2338 (M1 2020, M2 2022), with or without Touch Bar.
Please Note
High quality aftermarket battery, not an official Apple part.
Specifications
- Compatible Part Numbers: A1713, 020-00946, A2171
- Compatible MacBook Models: A1708, A2159, A2289, A2338
- Voltage: 11.41V
- Watt Hours: 58.19Whr
- Capacity: 5100mAh
- Battery Type: Li-Polymer
- Construction: Three cell blocks with control board and flex attached
- Warranty: 12 Months
How do I find my Model number?
MacBook Pro 13" M2 2022
MacBook Pro 13" M1 2020
MacBook Pro 13" 2020 Two Thunderbolt 3 ports
MacBook Pro 13" 2019 Two Thunderbolt 3 ports
MacBook Pro 13" 2017 Two Thunderbolt 3 ports
MacBook Pro 13" Late 2016 Two Thunderbolt 3 ports
Compatible Model Numbers
Model Number (A Number)
- A2338
EMC Number
- EMC 8162
MacBook Pro 13" M2 2022 How do I find my Model number?
Model Identifier
- Mac14,7
Device Number (M Number)
- MNEH3
- MNEJ3
- MNEP3
- MNEQ3
More info Less info
Model Number (A Number)
- A2338
EMC Number
- EMC 3578
MacBook Pro 13" M1 2020 How do I find my Model number?
Model Identifier
- MacBookPro17,1
Device Number (M Number)
- MYD82
- MYD83
- MYD92
- MYDA2
- MYDC2
More info Less info
Model Number (A Number)
- A2289
EMC Number
- EMC 3456
MacBook Pro 13" 2020 Two Thunderbolt 3 ports How do I find my Model number?
Model Identifier
- MacBookPro16,3
Device Number (M Number)
- MXK32
- MXK52
- MXK62
- MXK72
More info Less info
Model Number (A Number)
- A2159
EMC Number
- EMC 3301
MacBook Pro 13" 2019 Two Thunderbolt 3 ports How do I find my Model number?
Model Identifier
- MacBookPro15,4
Device Number (M Number)
- MUHN2
- MUHP2
- MUHQ2
- MUHR2
More info Less info
Model Number (A Number)
- A1708
EMC Number
- EMC 3164
MacBook Pro 13" 2017 Two Thunderbolt 3 ports How do I find my Model number?
Model Identifier
- MacBookPro14,1
Device Number (M Number)
- MPXQ2
- MPXR2
- MPXT2
- MPXU2
More info Less info
Model Number (A Number)
- A1708
EMC Number
- EMC 2978
MacBook Pro 13" Late 2016 Two Thunderbolt 3 ports How do I find my Model number?
Model Identifier
- MacBookPro13,1
Device Number (M Number)
- MLL42
- MLUQ2
More info Less info
Installation Help
Check out the video above or the step by step guide below for assistance with this repair
iFixit MacBook Pro 13" Battery Replacement Guide
Remember
After completing your repair, calibrate your newly installed battery by charging it to 100% and then charging for a further two hours. Use your MacBook until it shuts off due to low battery, and finally, charge it uninterrupted to 100% again
Here are some tools you may need to help you complete the repair.
- Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
- Nylon Antistatic Spudger Pry Tool
- Heavy Duty Strong Large Blue Suction Cup Opening Tool with lock
- iGadget Plastic Triangle Opening Picks (set of 5)
- 5x iGadget Plastic Flexible Opening Cards
- uFix iOpener Microwaveable Heated Bag Opening Tool
- iGadget Plastic Alcohol 200mL Bottle with Pump Top
- iGadget Universal Magnetic Work Project Mat with Marker (30cm x 25cm)
Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email
- Drain the battery below 25% before you start on this repair. A charged lithium-ion battery can catch fire or explode if punctured or damaged
- These MacBook Pros can power on by themselves when the bottom case comes off. On Intel models (A1708, A2159, A2289), turn off AutoBoot first in Terminal with sudo nvram AutoBoot=%00 (set it back afterwards with sudo nvram AutoBoot=%03). On M1 and M2 models (A2338) running macOS Sequoia or later, use sudo nvram BootPreference=%00 (undo it afterwards with sudo nvram -d BootPreference). Either way, disconnect the battery connector before anything else
- Always power down your device prior to working on it
- The P5 pentalobe and T5 Torx screwdrivers you need are included in the box with this battery.
- Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your device and tape the screws to the right places or use a screw mat
- The bottom case is held by six P5 pentalobe screws and four hidden clips. Lift the front edge with a suction cup and release the clips with opening picks
- Make sure you always unplug the battery before attempting any component removal
- The trackpad has to come out to free the battery, and its cable is stuck to the battery. Warm the cable and peel it off slowly rather than pulling it
- The battery cells are glued to the top case. Apply adhesive remover or isopropyl alcohol under each cell, give it a few minutes to soften, and lift with plastic cards. Never pry against a cell with metal or bend it
- Keep solvent off the display, keyboard and speakers. A sheet of foil between the keyboard and screen and a towel under the edge will catch drips
- Remove all the old adhesive so the new battery sits flat and the bottom case closes properly
- The control board and flex come already fitted to the battery, so there is no board to transfer from your old battery.
- If your newly installed battery is draining fast or shutting off randomly, first try the battery calibration steps found here. If that doesn't resolve it, on Intel models (A1708, A2159, A2289) try a PRAM and SMC reset; M1 and M2 models have no SMC reset - shut down, wait 30 seconds and restart
Caution
If the new battery or the battery in your device is swollen or damaged during repair, take the proper precautions
Note
You cannot dispose of old batteries in your general waste. Find recycling e-waste centres online or take to your local refuse station.
What’s In The Box
- 1x MacBook Pro 13" A1713/A2171 Replacement Battery
- 1x Instruction guide
- 1x Replacement connector cover tape
- 1x Simple replacement toolkit
- 1x Small plastic handle P5 pentalobe screwdriver
- 1x Small plastic handle T5 torx screwdriver
- 1x Suction cup
- 1x Plastic spudger
- 2x Plastic pry cards
- 1x Plastic wide head spudger
- 1x Pair of plastic gloves
- 1x Dust protection cloth
