Check out the video above or the step by step guide below for assistance with this repair

iFixit iPhone 11 Lightning Connector Assembly Replacement Guide

Here are some tools you may need to help you complete the repair.

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2, Y000 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• Metal Stand-Off 2.5mm Screwdriver Tool
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iPhone 11/XR LCD Screen Gasket Adhesive

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws, they are different lengths: two P2 pentalobe screws at the bottom, 1.1mm Y000 screws on the battery and display connector covers, and Phillips and standoff screws of several lengths around the loudspeaker and charging port. A long screw in the wrong hole can damage the logic board. Use a screw mat to keep them in place
• Remove the two pentalobe screws beside the Lightning port, warm the bottom edge and lift the screen from the front with a suction cup. Slide picks under the screen no more than 3mm deep, and take extra care on the right edge, where the display cables run. The screen opens like a book from the left side
• Make sure you always unplug the battery before attempting any component removal. Remove the three 1.1mm Y000 screws on the battery connector cover and lift the connector with a plastic spudger. The battery can stay in the phone for this repair
• To reach the charging port, remove the lower bracket, the Taptic Engine and the loudspeaker, then the SIM tray and SIM card reader. Note which way the small grounding clip on the loudspeaker sits so it goes back the same way

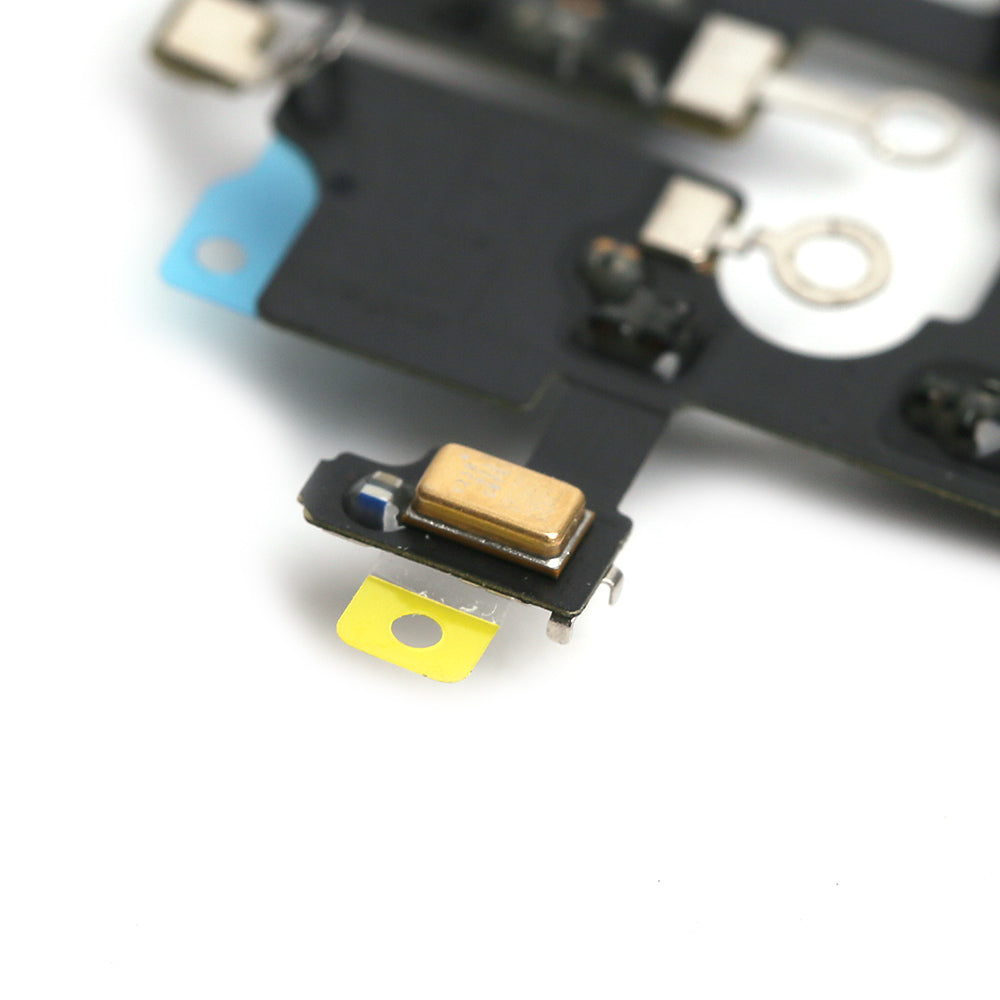

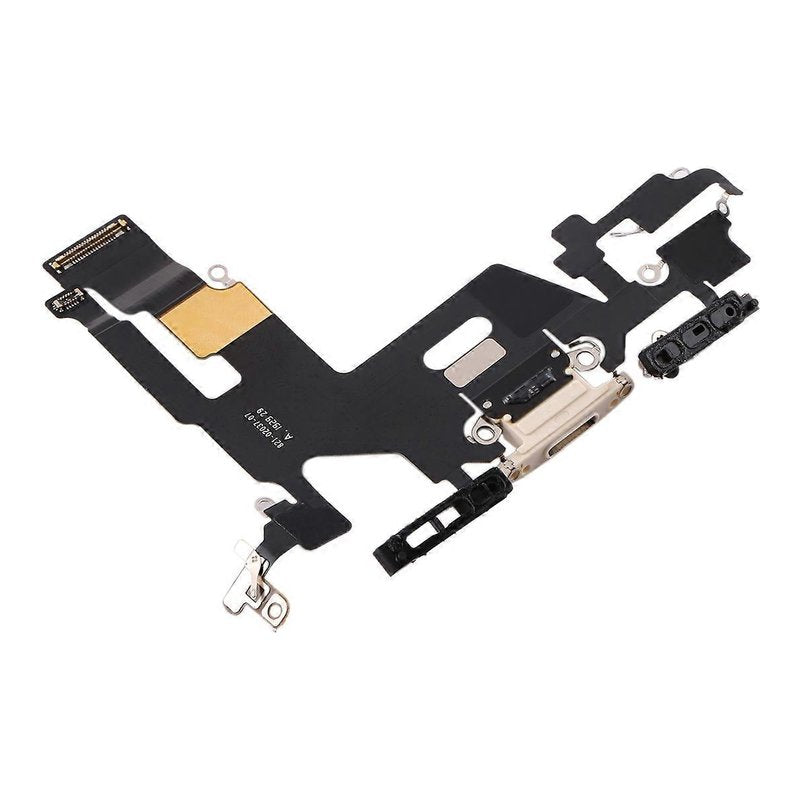

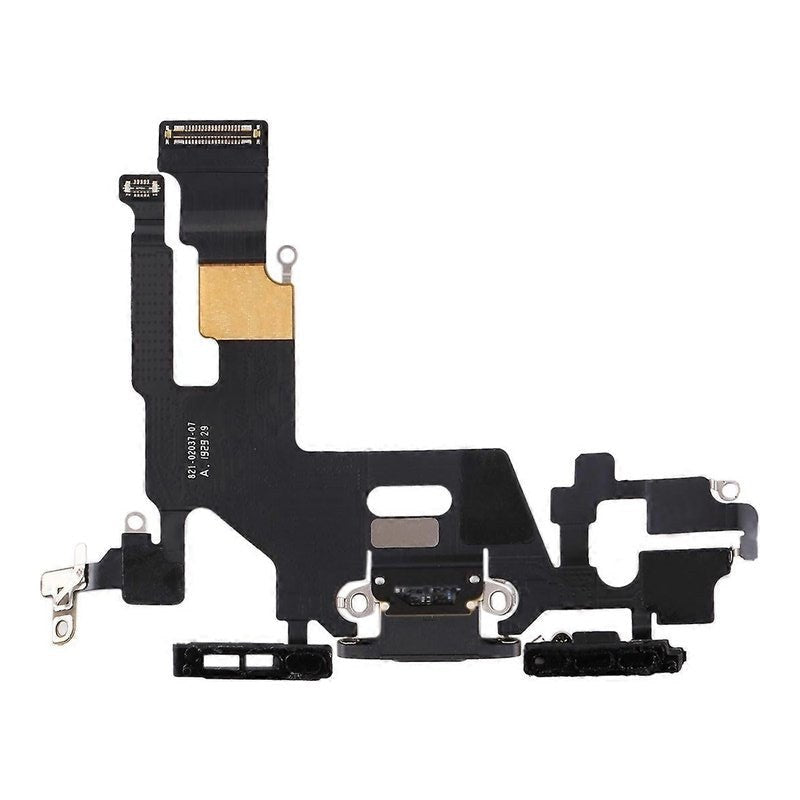

• The charging port flex is held by screws, a small holder with standoff screws and some glue. Warm the flex to soften the glue, and gently lever the microphone off the frame with a spudger rather than pulling on the flex
• The connector to the logic board can be tricky to align correctly so it fits into place, we recommend taking a pencil and tracing the original charging port so you know exactly where it gets positioned and lining the new charger port within the pencil lines
• Compare the new part with the old one and move across any adhesive or rubber seal the new part does not have. Seat the port flush with the bottom of the frame before fitting the screws
• Test charging, a computer connection, the microphone (record a voice memo), the loudspeaker and vibration before closing the phone
• Opening your iPhone 11 breaks its factory water-resistance seal. Clean off the old adhesive with isopropyl alcohol and fit new screen adhesive when you reassemble it
