Check out the video above for assistance with this repair

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Heat Bag
• Suction Cup
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• Black Spudger
• Fine Tipped Curved Tweezers
• 2mm Tesa Tape 61395 Double Sided Adhesive Tape

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it, and take out the SIM card tray before you lift the back cover.
• Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• The plastic back cover is held by clips and a light adhesive. Warm the edges with the iOpener, lift the cover with the suction cup and slide an opening pick around the edge. Do not overheat the phone: the screen and the battery are both damaged by heat, so work in short bursts.
• Only push an opening pick 4 to 5mm past the edge. Any deeper and you can cut the antenna cable, the power button cable or the rear cameras.
• Make sure you always unplug the battery before attempting any component removal

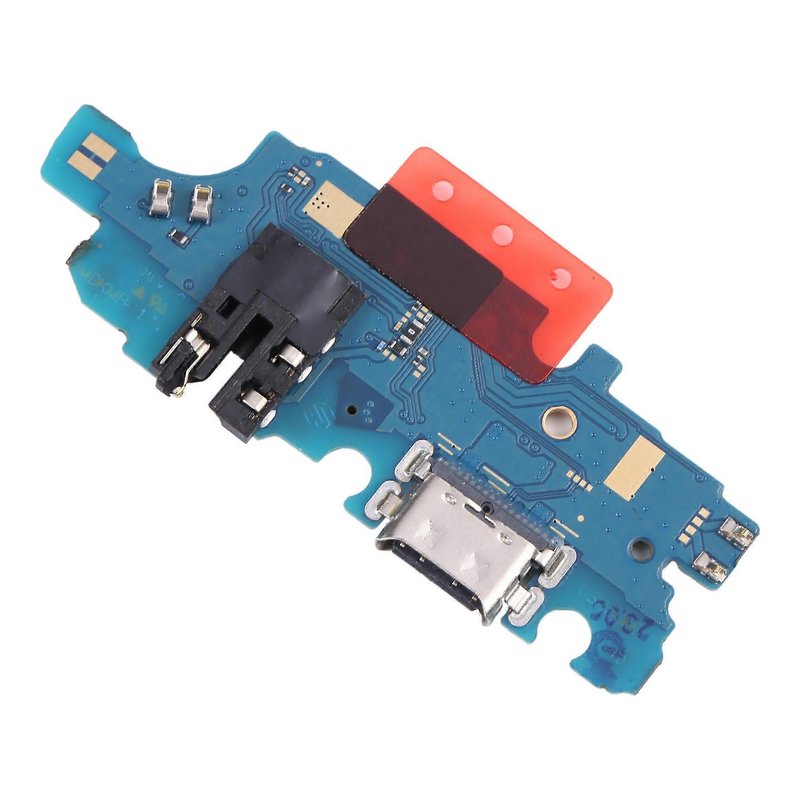

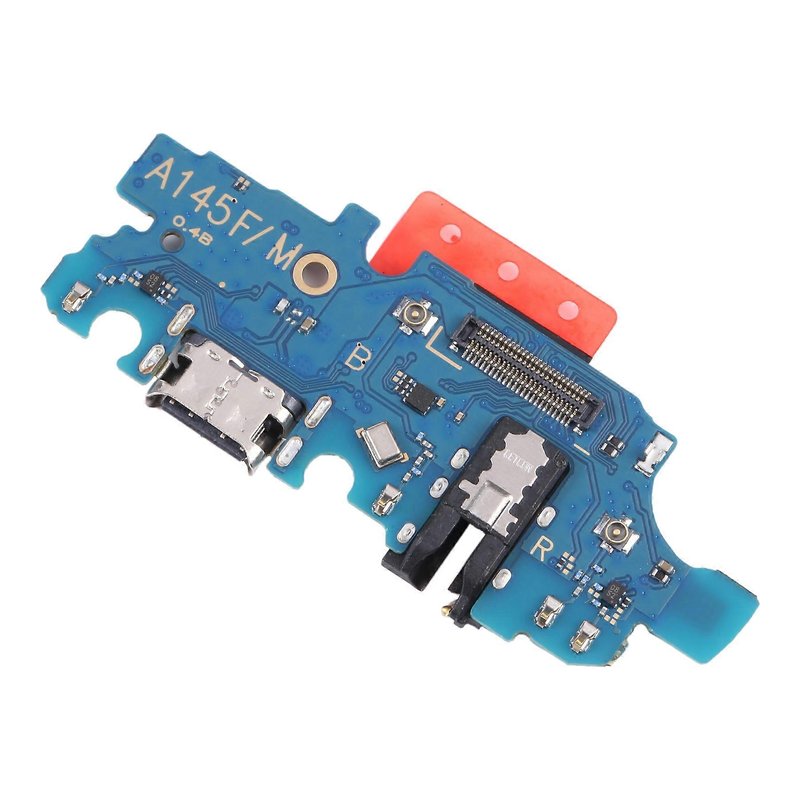

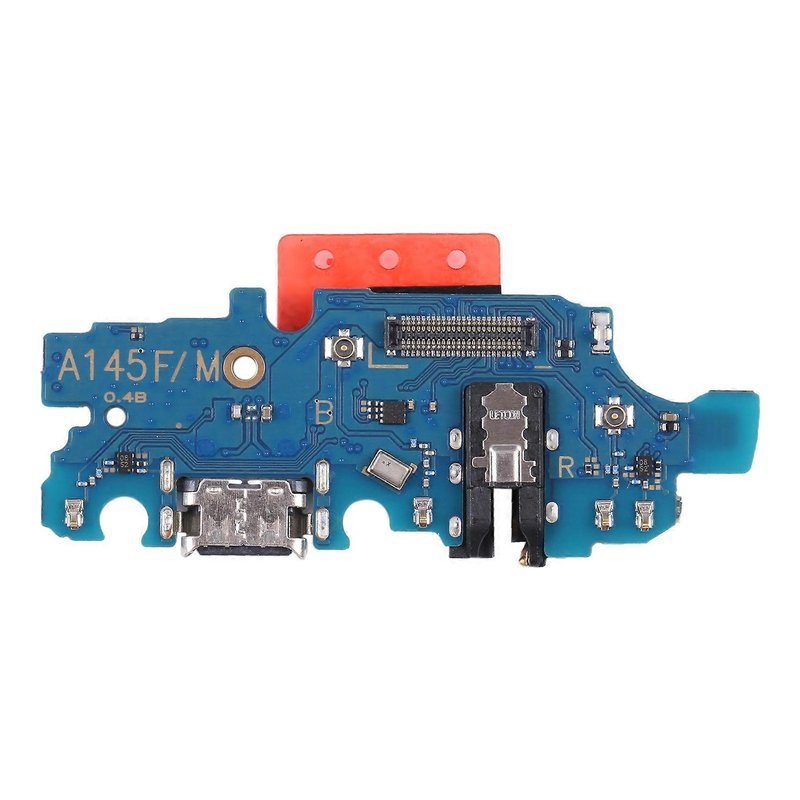

• The charging port board sits under a plastic cover at the bottom of the phone, with the loudspeaker. Remove its screws and lift it off to reach the board.
• The board connects to the main board with a long flex cable. Disconnect it at both ends with a spudger, and press both connectors back down until they click when refitting.
• Reconnect the aerial (coaxial antenna) cable and make sure the board's grounding contact sits against the frame when refitting, or the phone may lose signal after the repair.
• Test charging and the headphone jack before you close the phone.
• If the back cover does not sit flat when refitting, run a strip of 2mm Tesa tape where the old adhesive was.
