Check out the video above or the step by step guide below for assistance with this repair

iFixit MacBook Pro 14" Late 2023 (M3 Pro and M3 Max) Battery Replacement Guide

Here are some tools you may need to help you complete the repair.

• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iGadget Universal Magnetic Work Project Mat with Marker (30cm x 25cm)

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair. A charged lithium-ion battery can catch fire or explode if punctured or damaged
• These MacBook Pros can power on by themselves when the lid opens or a charger is connected. On macOS Sequoia or later, run sudo nvram BootPreference=%00 in Terminal (undo afterwards with sudo nvram -d BootPreference). Power down, and on older macOS keep the lid closed until the battery is disconnected
• The P5 pentalobe, T3 and T5 Torx screwdrivers you need are included in the box. The 3IP and 5IP Torx Plus screws turn with the T3 and T5 using firm downward pressure
• Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your laptop and tape the screws to the right places or use a screw mat
• The bottom case is held by eight P5 pentalobe screws (four 9.3 mm and four 5 mm) plus hidden clips. Lift the front edge with a suction cup, free the side clips with a pick, then pull the case toward the front to release the sliding clips at the back
• Unplug the battery first: peel the tape, open the data cable ZIF and slide it out. Remove the trackpad cable bracket (two 2.1 mm 3IP screws) and 3.8 mm 5IP connector screw; lift the connector at most 45 degrees over a card. Press connectors at each end, never the middle
• The trackpad has to come out (ten 5.7 mm 5IP screws). Keep the small metal washers on the screw posts, they are easy to lose
• Remove the 4 mm T5 battery board screw, then pull the 14 stretch-release strips slowly and low. If one snaps, add a few drops of isopropyl alcohol, wait a minute or two and lift with a plastic card. Keep the alcohol away from the speakers
• Never pry against a cell with metal tools, and never bend, squeeze or puncture the cells when removing the old battery or fitting the new one

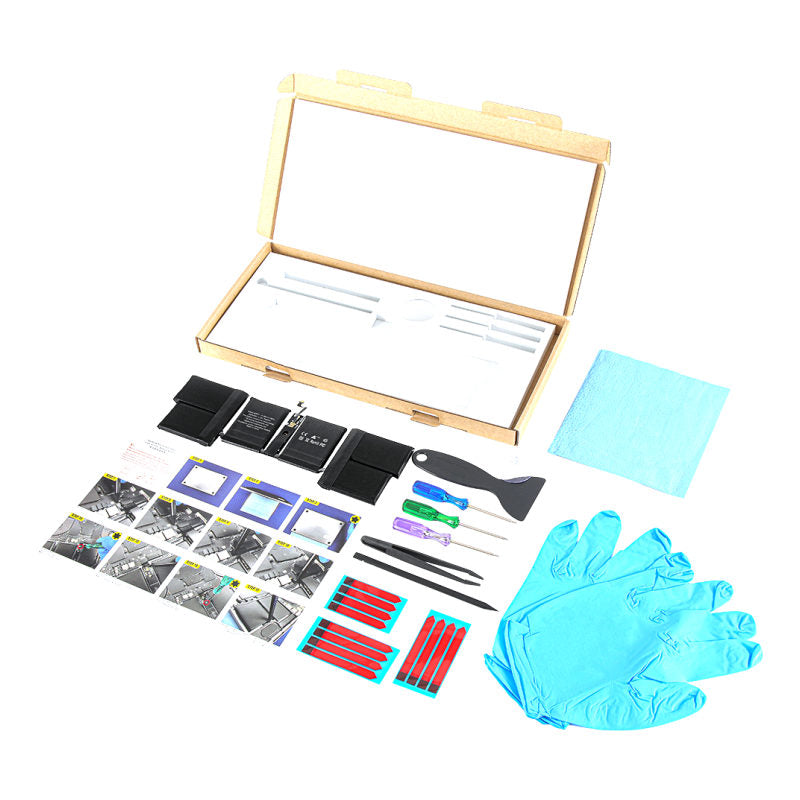

• The new adhesive strips come in the box. Fit them, test-fit the battery, then refit the trackpad screws loosely and line it up before tightening
• If your newly installed battery is draining fast or shutting off randomly, first try the battery calibration steps found here. Apple silicon Macs have no SMC reset - shut down, wait 30 seconds and restart
