Check out the video above for assistance with this repair

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Heat Bag
• Suction Cup
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• Black Spudger
• Fine Tipped Curved Tweezers
• 2mm Tesa Tape 61395 Double Sided Adhesive Tape

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it, and take out the SIM card tray before you lift the back cover.
• Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• The plastic back cover is held by clips. Start at the SIM tray slot and slide an opening pick around the edge. If it feels stuck, warm the edges briefly with the iOpener. Do not overheat the phone: the screen and the battery are both damaged by heat.
• Only push an opening pick 4 to 5mm past the edge. Any deeper and you can cut the antenna cable, the power button cable or the rear cameras.
• Make sure you always unplug the battery before attempting any component removal

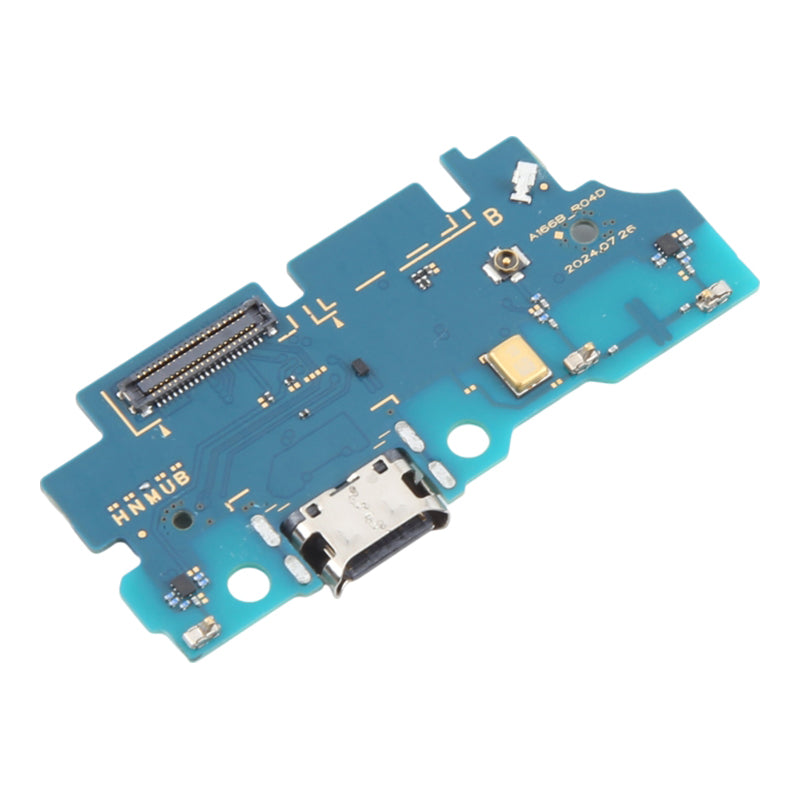

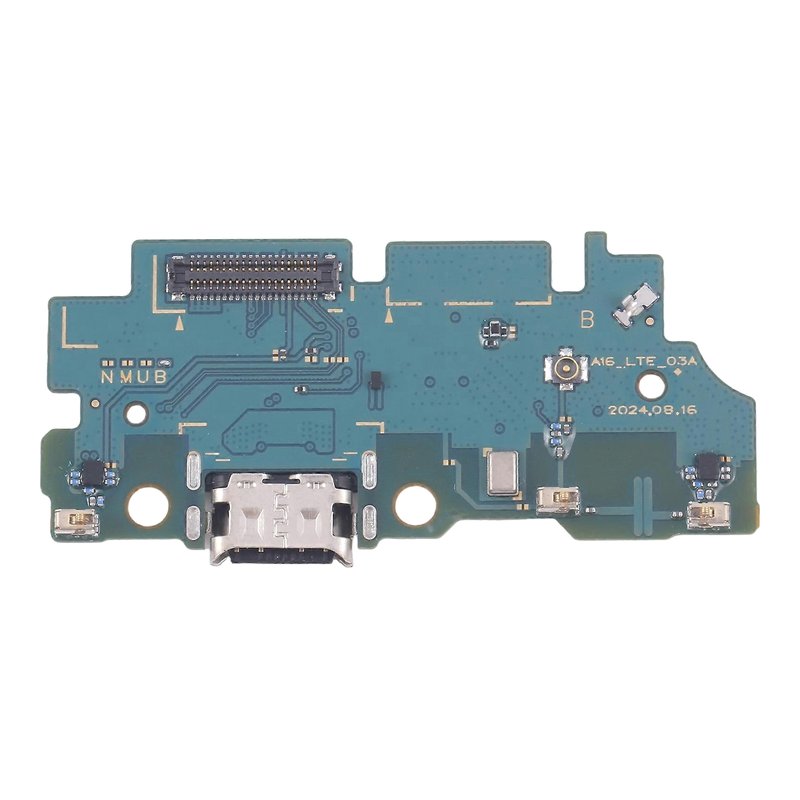

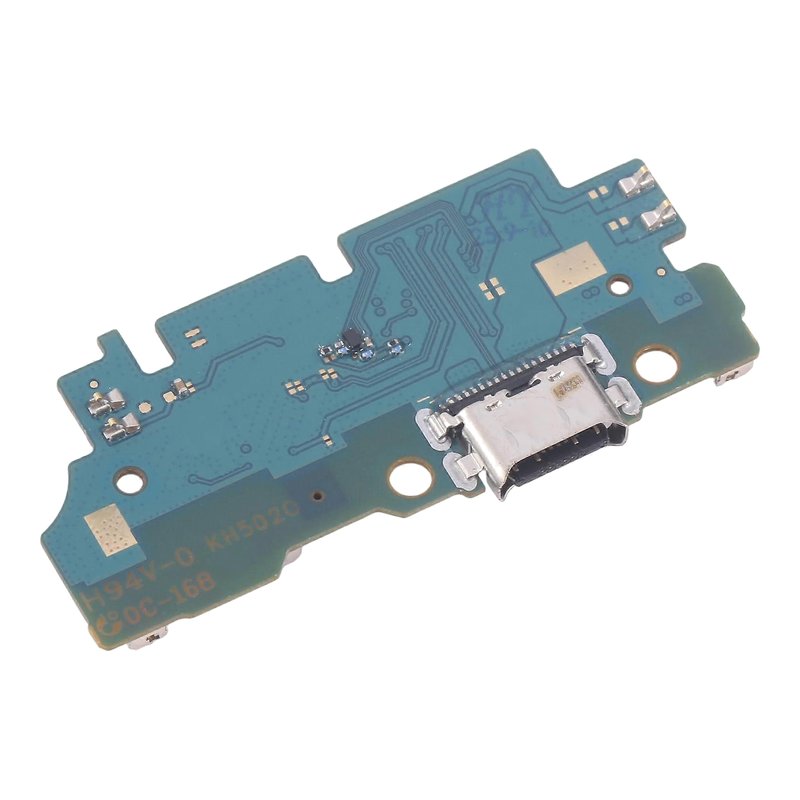

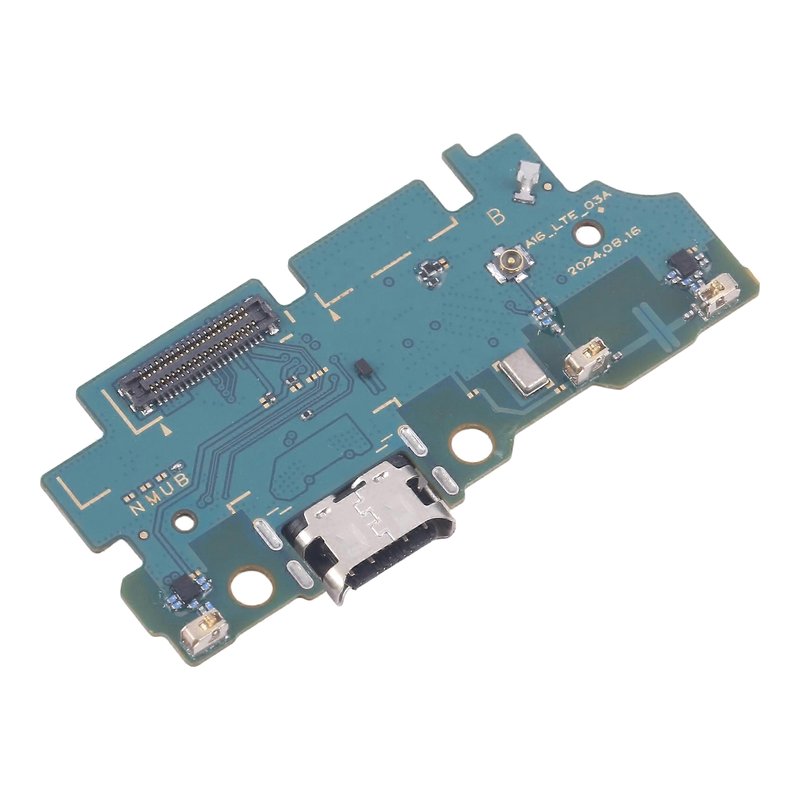

• The charging port board sits under a plastic cover at the bottom of the phone. Remove its screws and lift it off to reach the board.
• The board connects to the main board with a long flex cable. Disconnect it at both ends with a spudger, and press both connectors back down until they click when refitting.
• Reconnect the aerial (coaxial antenna) cable and make sure the board's grounding contact sits against the frame when refitting, or the phone may lose signal after the repair.
• Keep the rubber seal around the USB-C port in place when you fit the new board. It helps the phone's IP54 splash resistance.
• Test charging and the microphone (record a voice note) before you close the phone.
• If the back cover does not sit flat when refitting, run a strip of 2mm Tesa tape where the old adhesive was.
