Check out the video above for assistance with this repair

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Heat Bag
• Suction Cup
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• Black Spudger
• Fine Tipped Curved Tweezers
• 2mm Tesa Tape 61395 Double Sided Adhesive Tape

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it, and take out the SIM card tray first
• Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• The plastic back cover is held by clips and a light adhesive at the corners. Warm the corners with the iOpener, lift the cover with the suction cup and slide an opening pick around the edge. Do not overheat the phone: the screen and the battery are both damaged by heat, so work in short bursts.
• Only push an opening pick 4 to 5mm past the edge, and take care on the button side. The fingerprint (power key) cable joins the back cover to the phone, so lift the cover slowly and unplug that cable before taking the cover off.
• Make sure you always unplug the battery before attempting any component removal

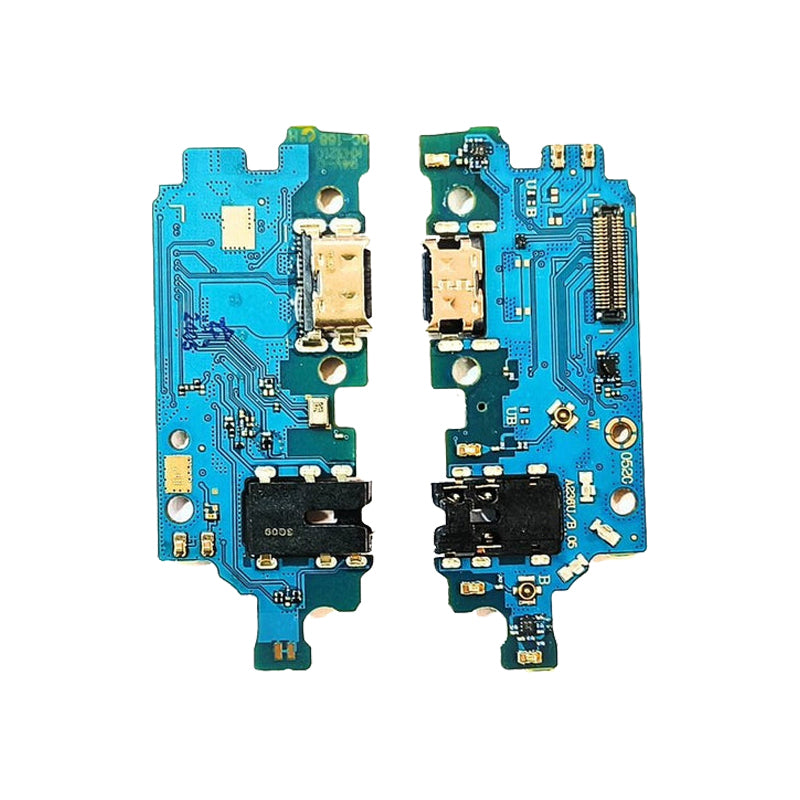

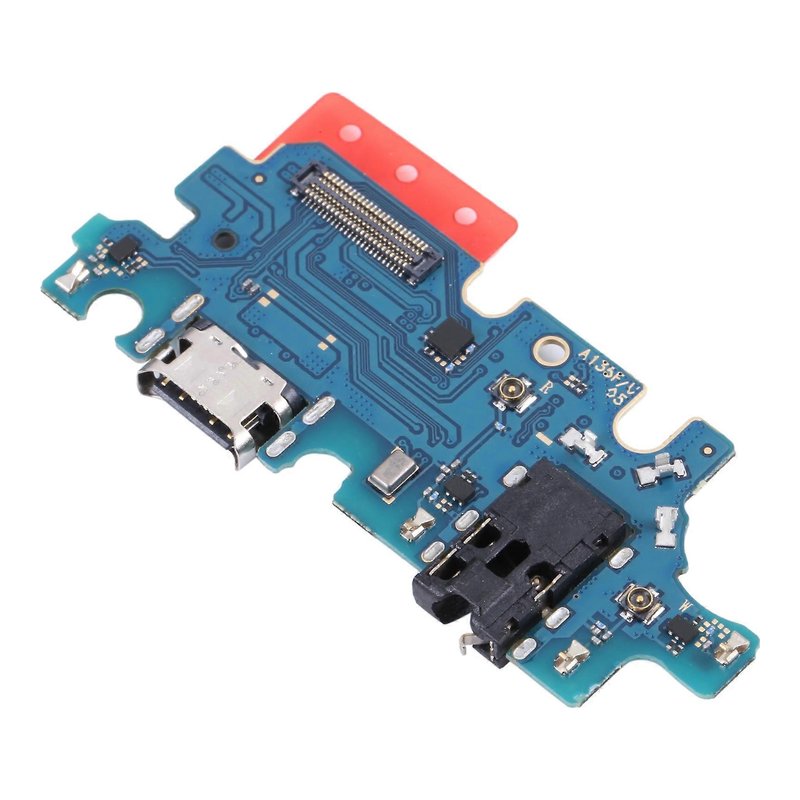

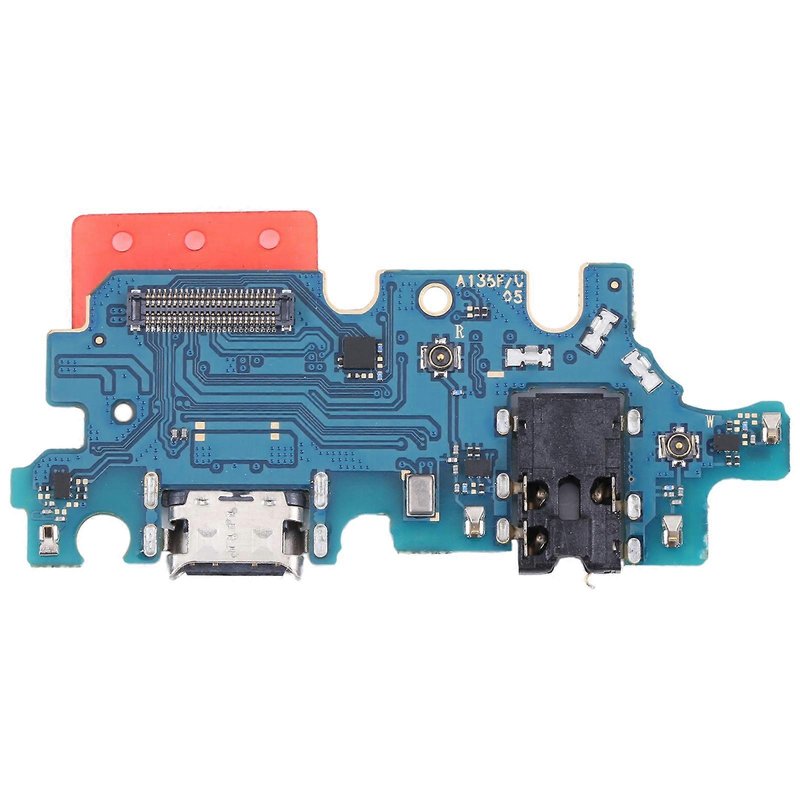

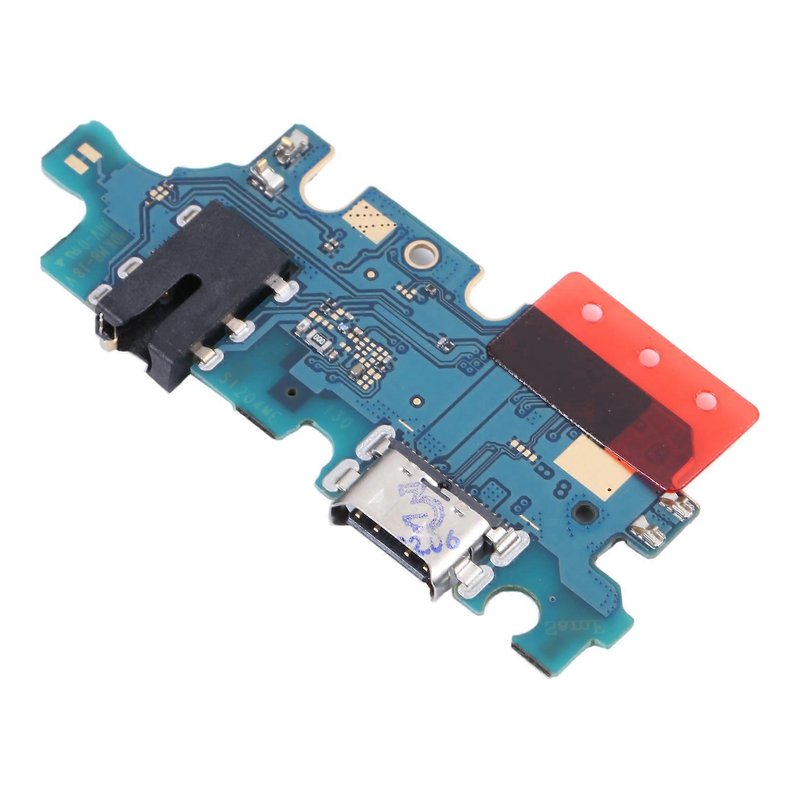

• The charging port board sits under a plastic cover at the bottom of the phone. Remove its screws and lift it off to reach the board.
• The board connects to the main board with a long flex cable. Disconnect it at both ends with a spudger, and press both connectors back down until they click when refitting.
• Reconnect the aerial (coaxial antenna) cables and make sure the board's grounding contact sits against the frame when refitting, or the phone may lose signal after the repair.
• Test charging, the headphone jack and the microphone before you close the phone.
• If the back cover does not sit flat when refitting, run a strip of 2mm Tesa tape where the old adhesive was.
