Samsung Z Flip 5 Outer Screen Replacement | OEM OLED Cover Screen (SM-F731B/F731U)
Samsung Z Flip 5 Outer Screen Replacement | OEM OLED Cover Screen (SM-F731B/F731U)
Regular price
NZ$149.99
Regular price
Sale price
NZ$149.99
Unit price
per
inc GST
Samsung Z Flip 5 Outer Screen Replacement | OEM OLED Cover Screen (SM-F731B/F731U)
Samsung Z Flip 5 Outer Screen Replacement | OEM OLED Cover Screen (SM-F731B/F731U)
Regular price
NZ$149.99
Regular price
Sale price
NZ$149.99
Unit price
per
inc GST
Email me when back in stock
DIY DIFFICULTY
ModerateAbout 30 minutes to 1 hour
Glued to the outer face, with its cable under a connector cover. The battery isn't touched.
- Samsung Galaxy Z Flip 5 outer screen replacement: premium OEM OLED cover screen with new glass fitted
- Fixes a cracked cover screen, black display, lines or touch not responding
- Compatible with Samsung Galaxy Z Flip 5 models; SM-F731B, SM-F731B/DS, SM-F731N, SM-F731U, SM-F731U1, SM-F731W, SM-F7310
Frequently Bought Together
Frequently Bought Together
Product Details
Cracked the outer screen on your Samsung Z Flip 5, or is the cover screen black, showing lines, or not responding to touch? This is an OEM OLED cover screen with new glass fitted (the front display you see with the phone closed) for the Galaxy Z Flip 5 (SM-F731B, SM-F731U).
- OEM OLED PANEL - An OEM Samsung OLED panel with new front glass fitted, in the original 3.4" size and 720 x 748 resolution, so colours, contrast and deep blacks match the cover screen you had.
- GLASS, PANEL AND TOUCH TOGETHER - The glass, OLED panel and touch layer come as one part with the camera rings and flex cable in place, so cracked glass, a dead cover screen and touch faults are fixed with the one part.
- TOUGH, SMUDGE RESISTANT GLASS - 9H rated glass with an oleophobic coating, so it stands up to everyday scratches and wipes clean of fingerprints.

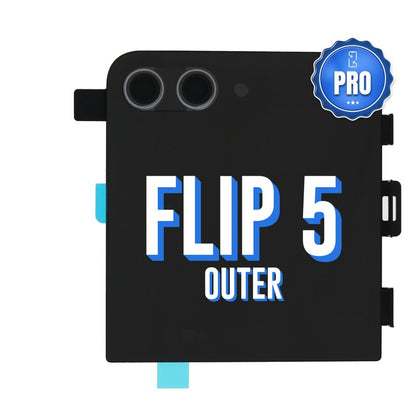

- PRECISE FIT - The camera cut-outs and edges line up with the original, so the cover screen sits flush on the top half of your phone.
- SENT FROM NZ STOCK - Shipped from our New Zealand stock, so there's no waiting weeks for a part to arrive from overseas.
Part Includes:
- Samsung Galaxy Z Flip 5 OLED outer cover screen
- 12 Month Warranty
Please Note
Does NOT fit the Z Flip 4 or replace the inner folding screen, and is not confirmed to fit the Z Flip 6. Check in Settings, About phone for your model.
Please Note
Only the cover screen comes off: the battery, board and inner folding screen stay in place.
Please Note
OEM OLED panel with replacement glass fitted, not a new Samsung part.
Specifications
- Screen Type: OEM OLED (glass replaced)
- Display Size: 3.4"
- Resolution: 720 x 748 pixels
- Colours: Black
- Glass Rating: 9H
- Frame: Not included
- Adhesive: Not included
- Warranty: 12 Months
How do I find my Model number?
Samsung Galaxy Z Flip 5
Compatible Model Numbers
Samsung Galaxy Z Flip 5Model Number (SM Number)
- SM-F731B
- SM-F731B/DS
- SM-F731N
- SM-F731U
- SM-F731U1
- SM-F731W
- SM-F7310
Installation Help
Check out the video above or the step by step guide below for assistance with this repair
Samsung Galaxy Z Flip5 Self-Repair Guide (Cover Screen section)
Here are some tools you may need to help you complete the repair.
- uFix iOpener Microwaveable Heated Bag Opening Tool
- Large Blue Suction Cup Opening Tool
- iGadget 5 piece opening picks
- Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
- Nylon Antistatic Spudger Pry Tool
- Box of Isopropyl Adhesive Cleaning Alcohol Pad Wipes x100
- 2mm Tesa Tape 61395 Roll Double Sided Adhesive Tape (100m)
Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email
- Drain the battery below 25% before you start on this repair
- Power the phone off and take out the SIM tray before you start.
- The cover screen is glued to the outside of the top half. Warm one edge at a time with the iOpener for about 3 minutes, keeping it below 65°C, as too much heat can damage the battery, then lift a gap with the suction cup and work a pick around, inserting only its tip, or you can cut the screen's flex or the camera parts under it.
- Before you lift the screen away, take the cable connector cover off with the tweezers, then unplug the cover screen cable with the spudger. Never pull on the screen while its cable is connected.
- The battery can't be disconnected for this repair. Keep the phone powered off, keep metal tools away from the battery and board, and never bend, crush or puncture the battery.
- Test the cover screen display and touch before you seal it in, and leave the protective film and stickers on until the new screen is working properly.
- Clean all the old adhesive off with isopropyl alcohol, then fit a strip of 2mm Tesa tape where the old adhesive was (no adhesive comes in the box). Connect the cable, press the connector cover back on with your finger, then press the screen down evenly so it sits flush.
- The Flip 5 is IPX8 rated, but Samsung says water resistance can't be guaranteed after a repair, so keep the phone away from water afterwards.
What’s In The Box
- 1x Samsung Z Flip 5 Outer Cover Screen Replacement
