Check out the video above or the step by step guide below for assistance with this repair

iFixit Samsung Galaxy S20 Ultra Screen Replacement Guide

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Microwaveable Heated Bag Opening Tool
• Large Blue Suction Cup Opening Tool
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• iPlastix Flexible Opening Tool by Dottorpod
• Nylon Antistatic Spudger Pry Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• Box of Isopropyl Adhesive Cleaning Alcohol Pad Wipes x100
• B7000 Multipurpose Liquid Repair Glue - 15ml
• 2mm Tesa Tape 61395 Roll Double Sided Adhesive Tape (100m)

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Power the phone off and take out the SIM tray before you open it.
• The back glass is glued on. Warm the edges gently with the iOpener in short bursts, as too much heat can damage the battery, lift a corner with the suction cup and slice the adhesive with a pick no more than 3 to 5mm in, or you can cut the wireless charging coil, antenna or camera cables. Go slowly at the curved corners, where the glass is most likely to crack.
• Always track your screws (Phillips #00) so they go back in the right place. Draw a picture of your phone and tape the screws to it, or use a screw mat
• Always unplug the battery before you remove any other parts. Keep metal tools away from the battery, and never bend, crush or puncture it.
• Take out the wireless charging coil, motherboard bracket, lower midframe and loudspeaker to reach the display cable, then disconnect it with the spudger.
• The old screen is glued to the front of the frame. Warm it in short bursts and work picks around the edge from the front, with an opening card or the iPlastix to hold the gap, keeping them shallow and over the front camera, as the unreinforced OLED panel can crack if you lever it. Thread the display cable out through the frame as it lifts away.
• Clean all the old adhesive off the frame with isopropyl alcohol so the new screen sits flat.

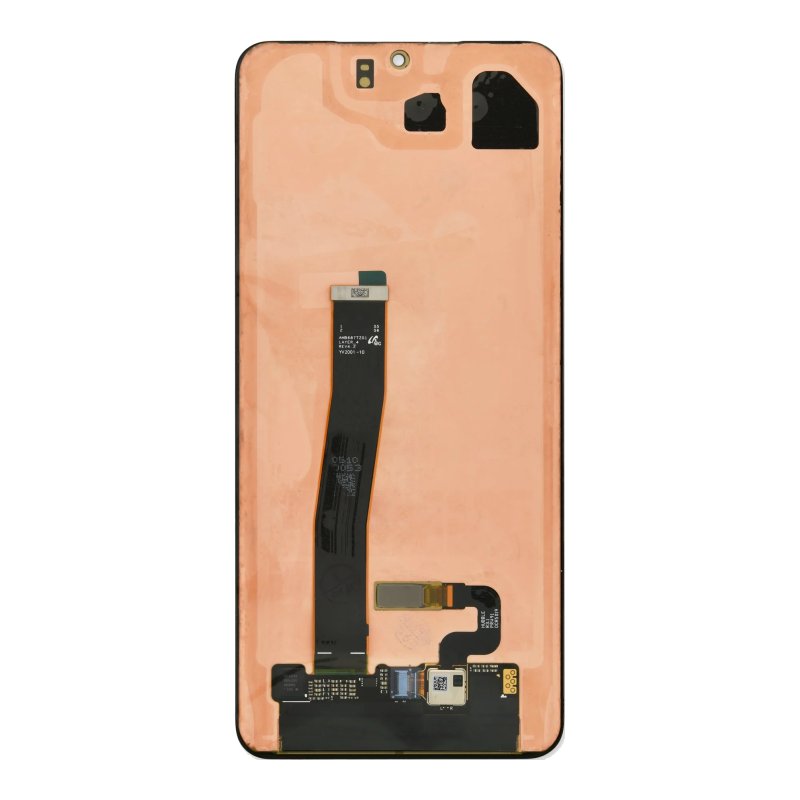

• Connect and test the new screen before gluing it in: thread its cable through the frame, plug it and the battery in, then check the display, touch and fingerprint (you may need to set it up again) before unplugging the battery. Don't peel off the protective film or any stickers until you've tested the new screen and it's working properly.
• Run a thin bead of B7000 around the frame, clear of the cable cutout, thread the cable back through and press the screen down evenly. Leave it held in place while the glue sets.
• Opening the phone breaks the factory seal. Fit a strip of 2mm Tesa tape where the old back adhesive was and press the back glass down all the way round. Without a full new adhesive seal the phone will lose its water resistance rating.
