Check out the video above for assistance with this repair

Here are some tools you may need to help you complete the repair.

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2, Y000 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• Metal Stand-Off 2.5mm Screwdriver Tool
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iPhone 14 Pro Max OLED Water Resistant Screen Gasket Adhesive
• iPhone 14 Pro Max Replacement Battery Adhesive

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws, they are many different lengths: two 6.8mm P2 pentalobe screws at the bottom edge, eight Y000 screws (1.3mm, 1.6mm and 1.9mm) on the battery connector cover, 1.5mm Phillips screws on the loudspeaker, and Phillips and standoff screws on the Taptic Engine and logic board. Draw a picture of your phone and tape the screws to the right places or use a screw mat
• Remove the two pentalobe screws beside the Lightning port, warm the edges of the screen and lift it with a suction cup from the front (not through the back glass). Slide an opening pick under the screen, no more than 3mm deep (2mm on the left edge), and cut the adhesive around the edges. Open the screen like a book and don't strain the display cables
• Make sure you always unplug the battery before attempting any component removal. Disconnect the battery first, then the display cables, and reconnect the battery last
• Remove the loudspeaker and Taptic Engine, then take the battery out with its stretch-release pull tabs (a little isopropyl alcohol helps if it sticks), as shown in the iFixit iPhone 14 Pro Max Battery Replacement guide. Fit new battery adhesive strips when it goes back in

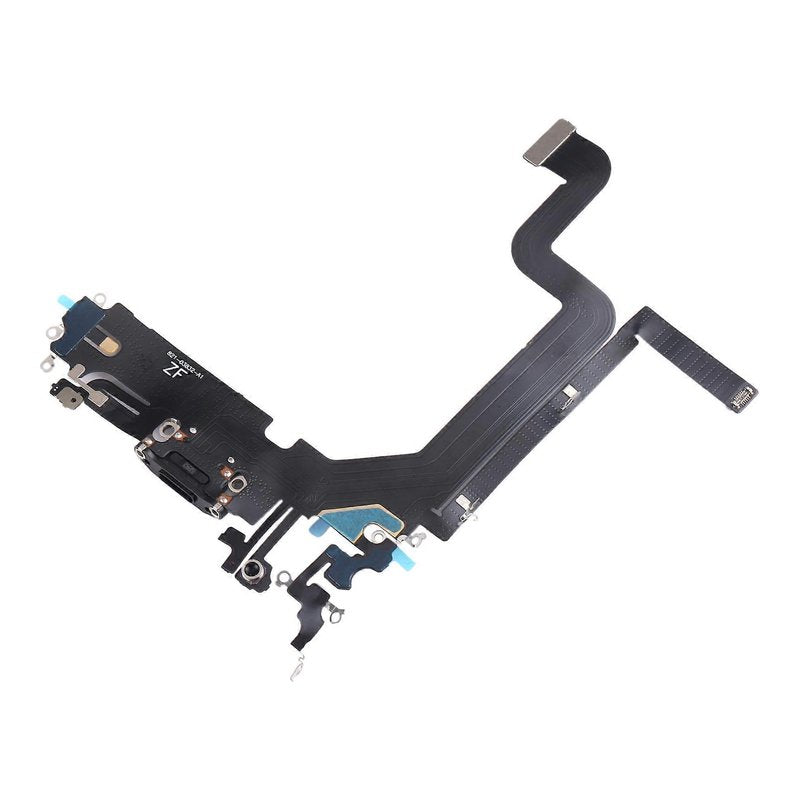

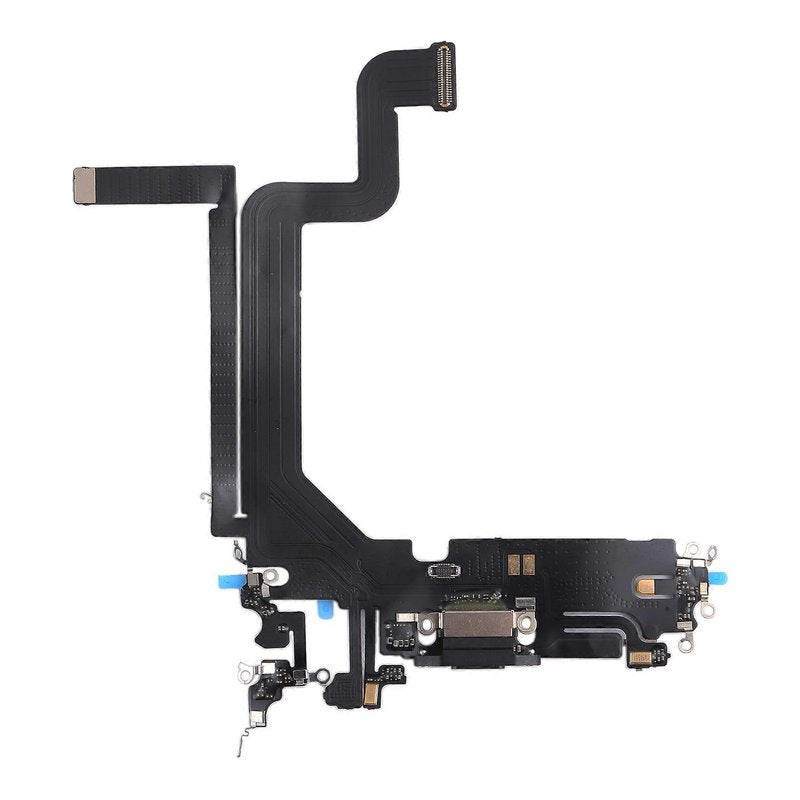

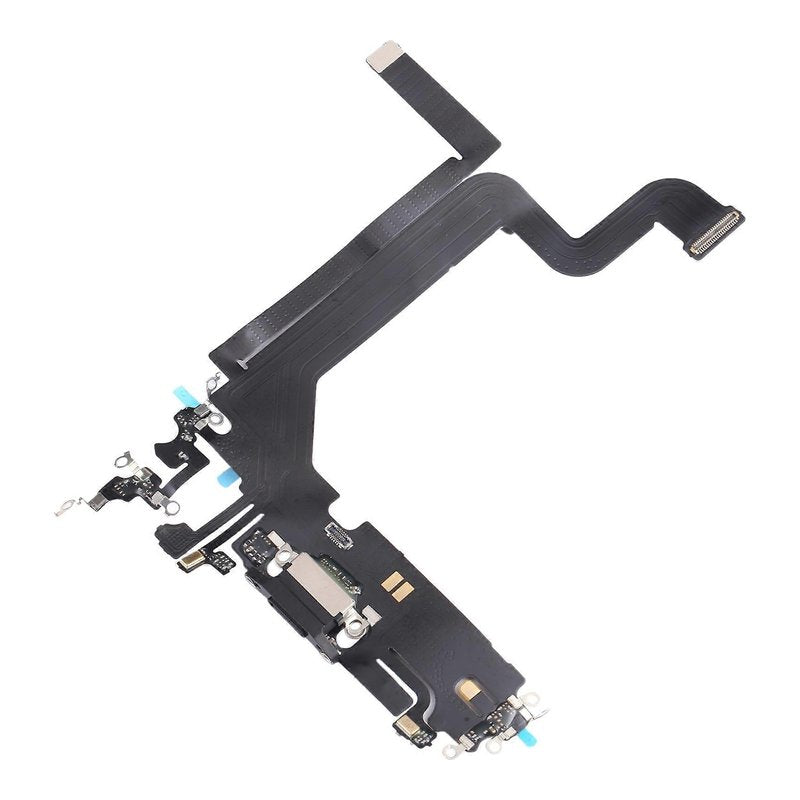

• The charging port flex runs under the logic board, so unplug every connector and lift the logic board to free it. Never pry against the logic board
• The connector to the logic board can be tricky to align correctly so it fits into place. We recommend taking a pencil and tracing the original charging port so you know exactly where it gets positioned and lining the new charger port within the pencil lines
• Before closing the phone, test that it charges, connects to a computer and that the microphone works (record a voice memo)
• Opening your iPhone 14 Pro Max breaks its factory water-resistance seal. Clean off the old adhesive with isopropyl alcohol and fit a new screen adhesive seal when you reassemble it
