Check out the video above for assistance with this repair

Here are some tools you may need to help you complete the repair.

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2, Y000 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• Metal Stand-Off 2.5mm Screwdriver Tool
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iPhone 15 OLED Water Resistant Screen Gasket Adhesive
• iPhone 15 Water Resistant Back Glass Gasket Adhesive

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws, they are many different lengths: two 7.7mm P2 pentalobe screws beside the USB-C port, small Y000 screws on the connector covers, standoff screws holding the logic board and seven small screws of three types holding the port. Draw a picture of your phone and tape the screws to the right places or use a screw mat
• On the iPhone 15 both the screen and the back glass come off for this repair. Remove the two pentalobe screws, warm the edges and lift each panel with a suction cup, keeping your opening picks shallow so you don't cut the cables underneath
• Make sure you always unplug the battery before attempting any component removal. The battery connector sits under a small connector cover held by Y000 screws: disconnect it first and reconnect it last

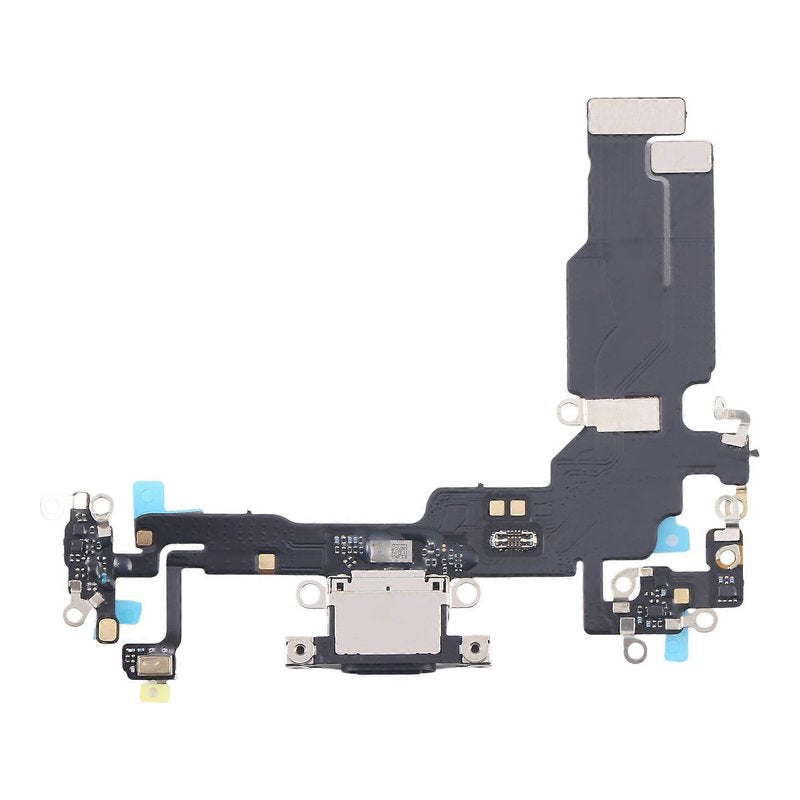

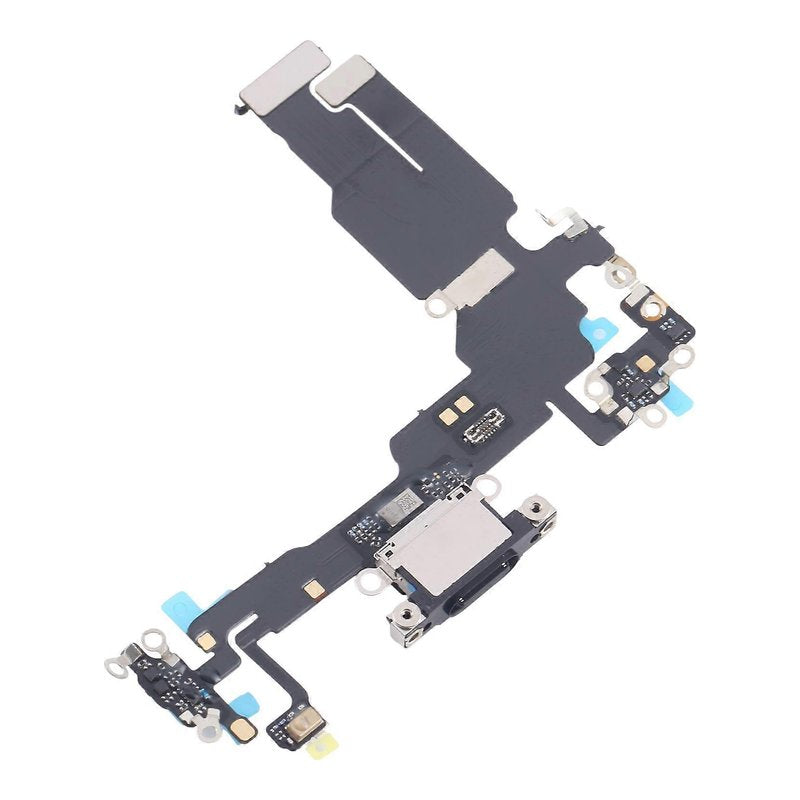

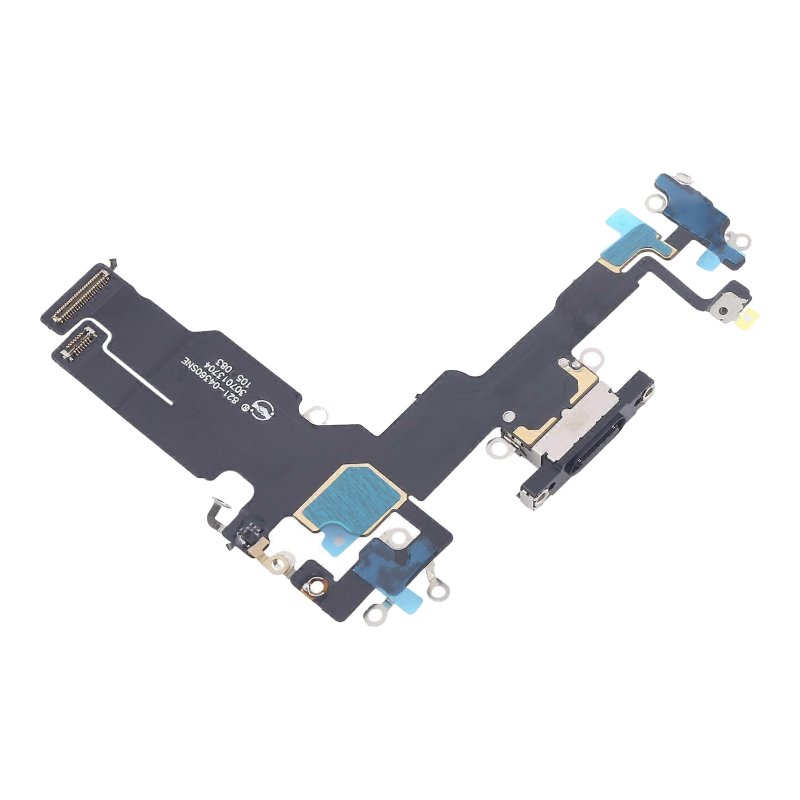

• The charging port sits under the logic board. The cameras, top and bottom speakers, Taptic Engine, main microphone, SIM tray assembly and logic board come out first. The port flex is held by its screws and adhesive: lift its end and peel it gently off the frame
• The connector to the logic board can be tricky to align correctly so it fits into place. Before removing the old port, trace around it with a pencil so you know exactly where it sits. To line up the new port, plug a USB-C cable (not connected to power) in from outside and press the port onto it, then fit the screws
• Check the two grounding clips are still in place with their springs facing the screen side, and press the small microphone on the new flex into its recess to the left of the speaker seal
• Before closing the phone, test that it charges and connects to a computer, and make a test call or voice memo to check the microphones
• Opening your iPhone 15 breaks its factory water-resistance seal. Clean off the old adhesive with isopropyl alcohol and fit new screen adhesive and back glass adhesive when you close it up
