Check out the video above for assistance with this repair

Here are some tools you may need to help you complete the repair.

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2, Y000 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• Metal Stand-Off 2.5mm Screwdriver Tool
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iPhone 14 Plus Water Resistant Rear Back Glass Gasket Adhesive Glue

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws, they are many different lengths: two 6.8mm P2 pentalobe screws at the bottom edge, two 1.3mm Y000 screws on the battery connector cover, one 1.0mm Y000 on the charging coil connector bracket, then small Phillips and Y000 screws on the bottom brackets and loudspeaker. Draw a picture of your phone and tape the screws to the right places or use a screw mat
• The iPhone 14 Plus opens from the back glass, so the screen can stay on. Warm the edges of the back glass, lift it with a suction cup and slide opening picks around the edge, no more than 3mm deep, and don't insert a pick along the right edge where a delicate cable runs
• The back glass stays connected by the charging coil cable, so open it like the back cover of a book and don't strain the cable
• Make sure you always unplug the battery before attempting any component removal. On the iPhone 14 Plus the battery connector sits under a small cover held by two Y000 screws. Then disconnect the charging coil cable so the back glass can be set aside

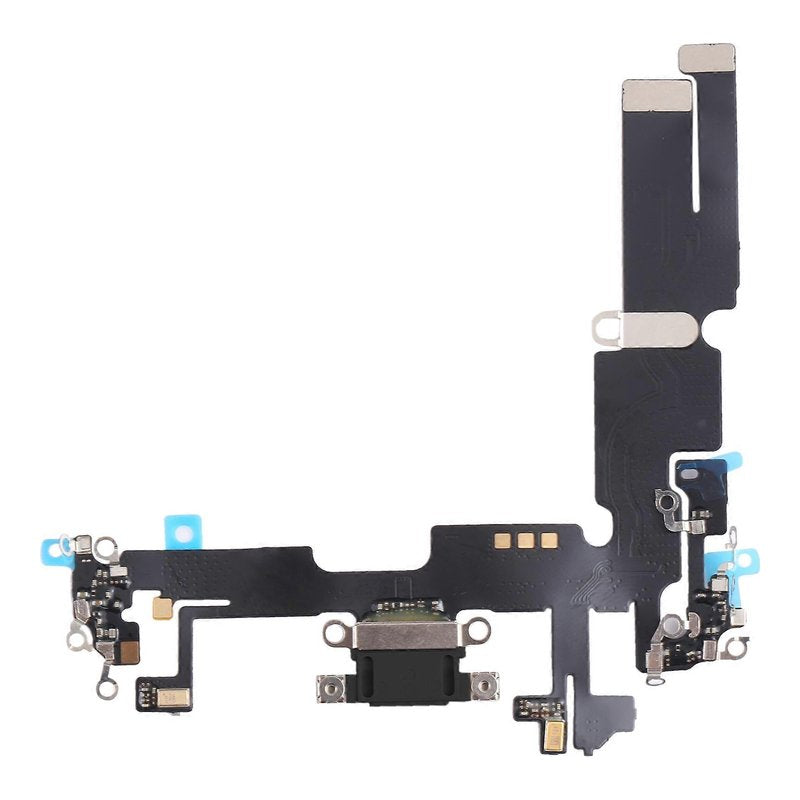

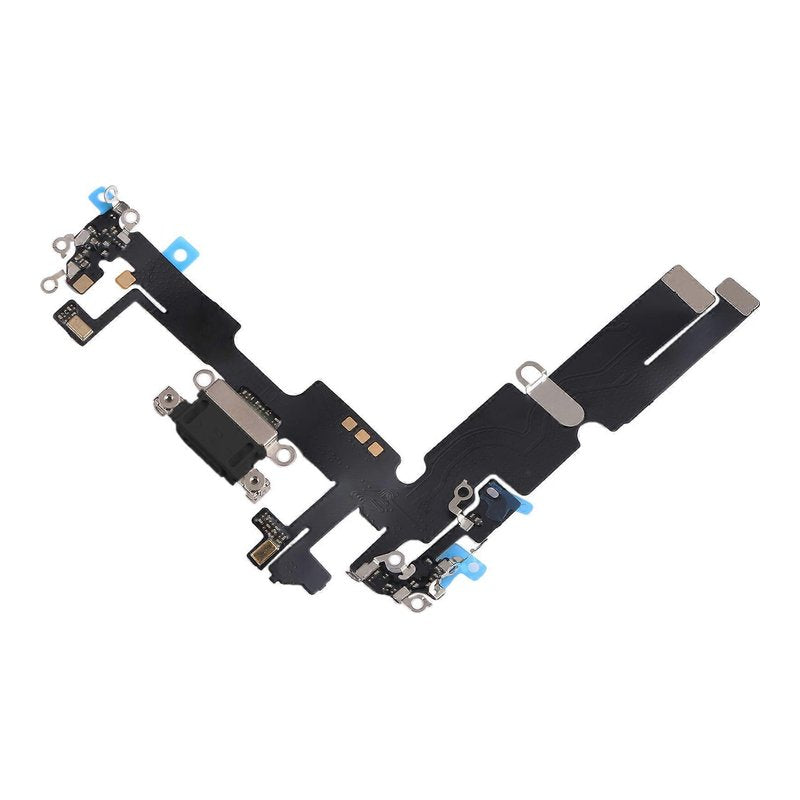

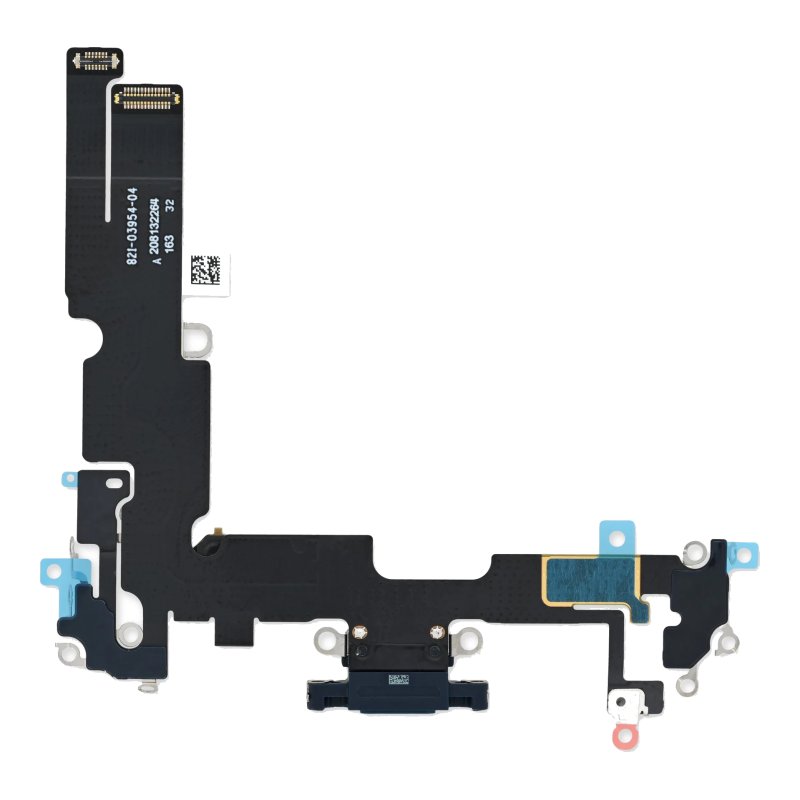

• The charging port sits at the bottom edge next to the loudspeaker and Taptic Engine, which also come out from the back. Follow the video for the brackets and screws over the port, and disconnect the port flex from the logic board with a spudger before lifting the port out
• The connector to the logic board can be tricky to align correctly so it fits into place. We recommend taking a pencil and tracing the original charging port so you know exactly where it gets positioned and lining the new charger port within the pencil lines
• Before closing the phone, test that it charges, connects to a computer and that the microphone works (record a voice memo and a short video)
• Opening your iPhone 14 Plus breaks its factory water-resistance seal. Clean off the old adhesive with isopropyl alcohol and fit new back glass adhesive when you reassemble it
