Check out the video above for assistance with this repair

Here are some tools you may need to help you complete the repair.

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2, Y000 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• Metal Stand-Off 2.5mm Screwdriver Tool
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iPhone 14/iPhone 16e Water Resistant Rear Back Glass Gasket Adhesive Glue

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws, they are many different lengths: two 6.8mm P2 pentalobe screws either side of the Lightning port, then small Y000 and Phillips screws on the battery connector cover, the bottom brackets and the loudspeaker (three 1.4mm and one 1.6mm Phillips, one 1.2mm Y000). Draw a picture of your phone and tape the screws to the right places or use a screw mat
• For this repair the iPhone 14 is opened from the back glass and the screen can stay on. Warm the edges of the back glass, lift it with a suction cup and slide opening picks around the edge, no more than 3mm deep so you don't cut the cables along the edges
• The back glass stays connected by the charging coil cable, so open it like the back cover of a book and don't strain the cable
• Make sure you always unplug the battery before attempting any component removal. On the iPhone 14 the battery connector sits under the back glass, beneath a small cover held by two Y000 screws. Then disconnect the charging coil cable so the back glass can be set aside

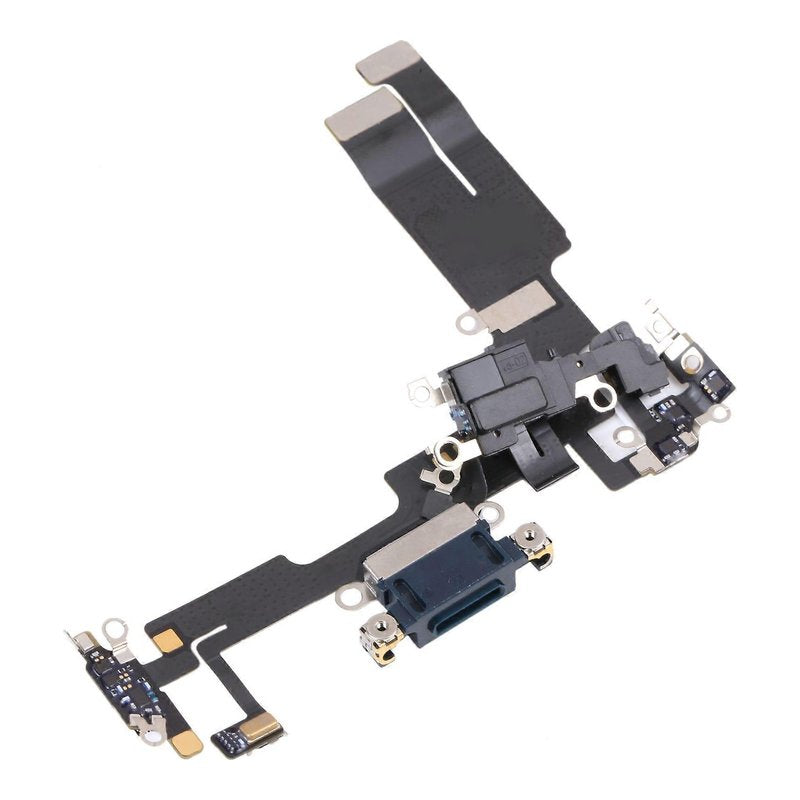

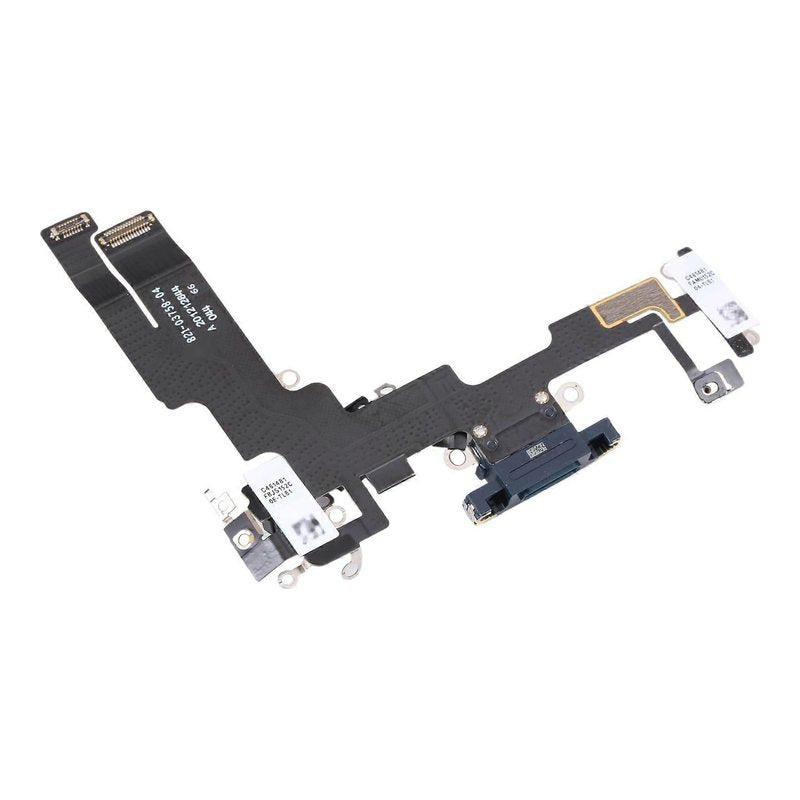

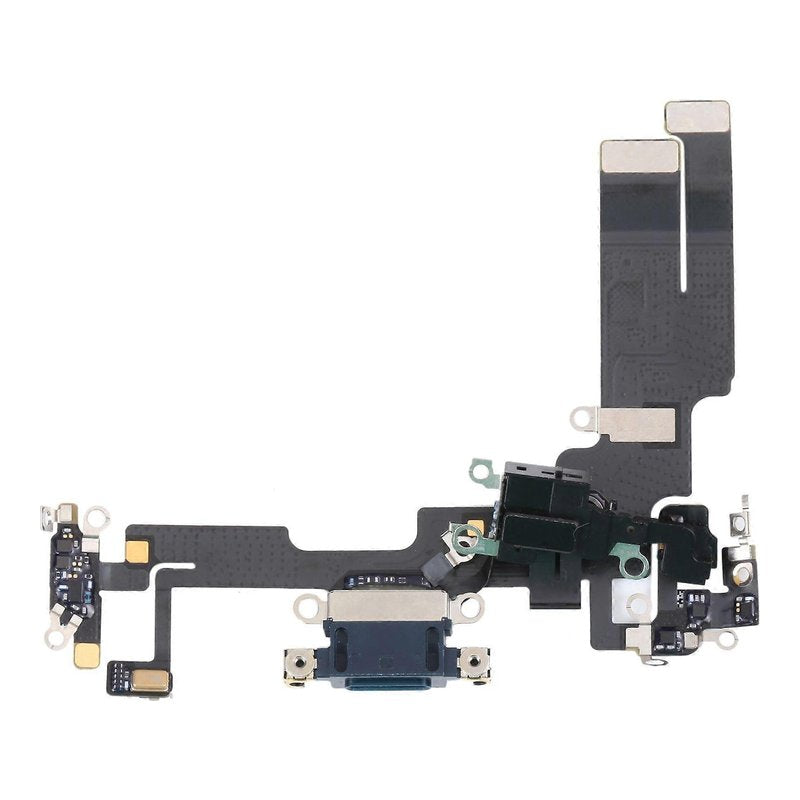

• The charging port is reached from the back once the bottom brackets and loudspeaker are out. The logic board stays in. Disconnect the port flex from the logic board with a spudger before lifting the port out
• The connector to the logic board can be tricky to align correctly so it fits into place. We recommend taking a pencil and tracing the original charging port so you know exactly where it gets positioned and lining the new charger port within the pencil lines
• Before closing the phone, test that it charges, connects to a computer and that the microphone works (record a voice memo and a short video)
• Opening your iPhone 14 breaks its factory water-resistance seal. Clean off the old adhesive with isopropyl alcohol and fit new back glass adhesive when you reassemble it
