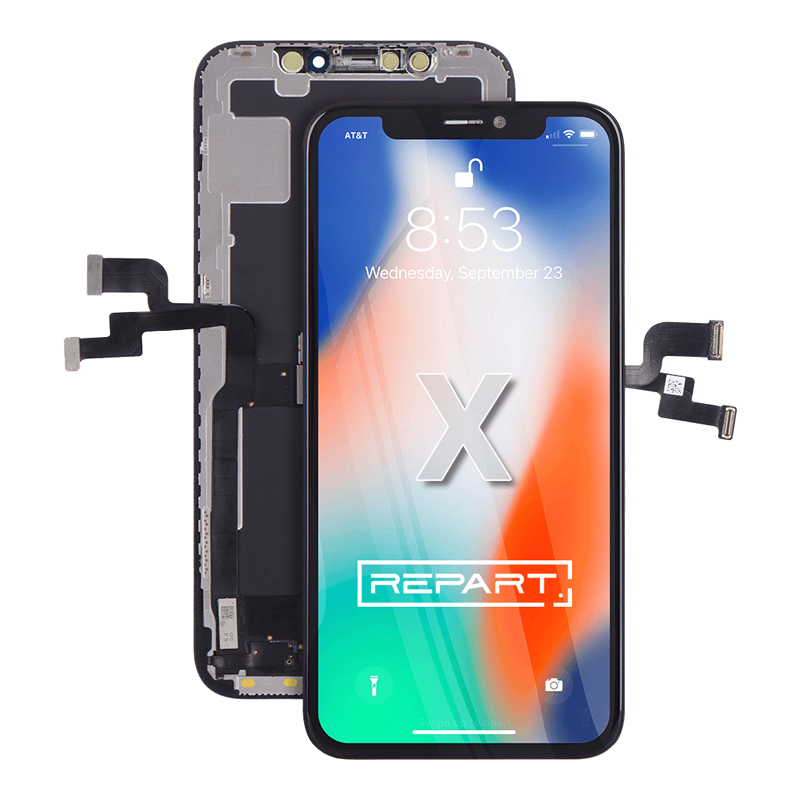

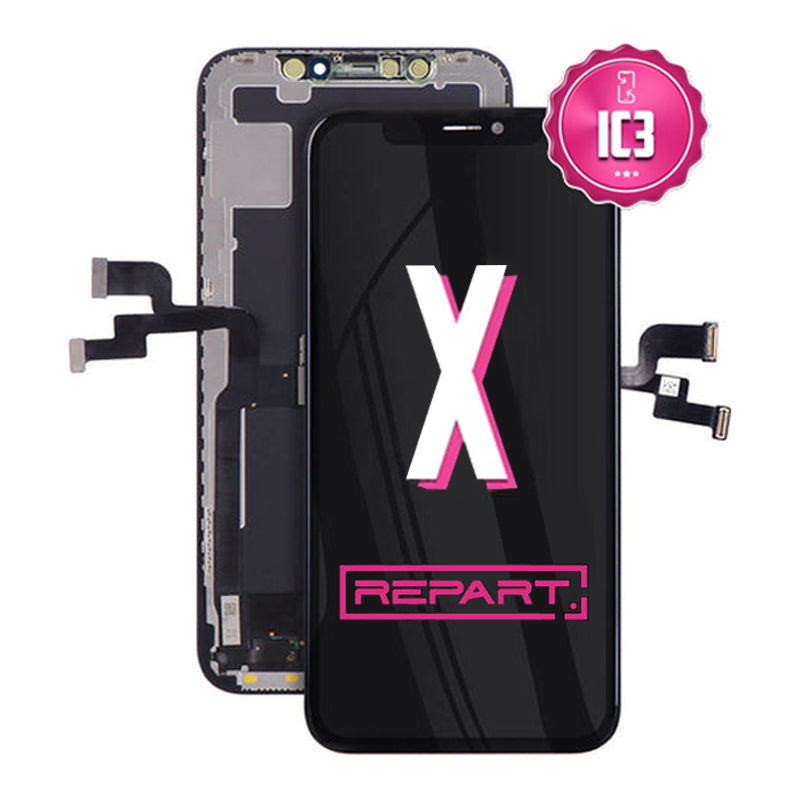

iPhone X IC3 LCD Screen Replacement | In-Cell
iPhone X IC3 LCD Screen Replacement | In-Cell
5
IPHX-12
In Stock
Regular price
NZ$46.99
Regular price
Sale price
NZ$46.99
Unit price
per
inc GST
iPhone X IC3 LCD Screen Replacement | In-Cell
iPhone X IC3 LCD Screen Replacement | In-Cell
5
IPHX-12
In Stock
Regular price
NZ$46.99
Regular price
Sale price
NZ$46.99
Unit price
per
inc GST
- REPART Premium TFT LCD with high colour intensity
- In-Cell technology which has the LCD, touchscreen and 3D touch in the same sensor layer for a quicker, stable touch system
- True Tone Compatible (Transfer machine required)
- Compatible with iPhone X models; A1865, A1901 & A1902
Frequently Bought Together
Frequently Bought Together
Product Details
The REPART iPhone X In-Cell Screen Assembly features a number of innovative features that are crafted to high standards of quality. With its TDDI Smooth Touch Display Panel, it is both elegant to look at and pleasing to touch. The 2436 x 1125 pixels result in a PPI of 458, which ensures sharp, clear, and vibrant visual content. The brilliant display offers outstanding brightness of 550cd/㎡±50, making it easily viewable even in bright environments. This is the highest bang for buck display on the market!
- AMAZING IN-CELL TECHNOLOGY - Includes In-Cell Technology which has the LCD, Touchscreen and 3D Touch in the same sensor layer. You don't have to use the cheap aftermarket Out-Of-Cell Screens (OOC) anymore. No more intermittent or delayed touch, no more dull cold colours or shadows around the edge of the screen.
- COF BONDING PROCESS - The industry leading Chip-on-Flex bonding process allows the cable to be more flexible in positioning which allows for a thinner bezel and greater screen size to match the dimensions of the original
- PREMIUM LCD - Our iGadget IC3 range includes a premium TFT LCD with brighter colours, whiter whites and darker blacks than other aftermarket LCD screens available
- ILLUMINATION UNIFORMITY - The combination of the premium LCD and the In-Cell Technology means you get illumination uniformity. A side-effect of the OOC screens is shadows and dark patches around the edge of the screen due to the distance between screen and glass. The IC3 has a uniform colour and brightness across the whole screen.
- INTEGRATED DRIVER CONTROL - Our iGadget IC3 range requires only one Integrated Driver Controller IC (IDC) to perform display, touch and 3D touch functions simultaneously, enhancing power efficiency, brightness, color and contrast.
- QUALITY MATERIALS - REPART IC3 screens have been thoughtfully designed and constructed from superior quality materials. The TFT LCD is equipped with superior circuitry and components which delivers a premium product quality. This is coupled with rigorous testing procedures to ensure our IC3 screens outperform standard In-cell screens.
- PRECISE CUTOUTS - The dimensions and cutouts are accurate to the Original. The technicians have meticulously worked to make sure all dimensions are exact so installation is a breeze.
- COST EFFECTIVE - iGadget IC3 screens a much cheaper alternative to the Original OLED screens, saving you money without costing you in quality.
Please Note
This is a third party iPhone X replacement screen and not an Official Apple product
Specifications
- Screen Type: TFT-LCD
- Screen Brand: REPART
- Touch System Type: In-Cell
- Backlight Type: ESR
- Display Size: 5.8"
- Refresh Rate: 60Hz
- Polariser Viewing Angle: 360 degrees
- True Tone Capable: Yes (Transfer machine required)
- IC Transferrable: No
- Pixel Density: 458ppi
- Resolution: 1125 x 2436
- Colour Temp: 6500-7500k
- Colours: Black
- Brightness: 450-550 cd/m2
- Glass Rating: 9H
- Warranty: 12 Months
How do I find my Model number?
iPhone X
Compatible Model Numbers
iPhone XModel Number (A Number)
- A1865
- A1901
- A1902
How do I find my Model number?
iPhone X Model Numbers
Model Identifier
- iPhone10,3
- iPhone10,6
EMC Number
- EMC 3161
- EMC 3175
- EMC 3176
Device Number (M Number)
- MQA52
- MQA62
- MQA82
- MQA92
- MQAC2
- MQAD2
- MQAF2
- MQAG2
- MQAJ2
- MQAK2
- MQAM2
- MQAN2
- MQAQ2
- MQAR2
- MQAU2
- MQAV2
- MQAX2
- MQAY2
- MQC12
- MQC22
- MQCK2
- MQCL2
- MQCN2
- MQCP2
- MQCR2
- MQCT2
- MQCV2
- MQCW2
More info Less info
Installation Help
Check out the video above or step by step guide below for assistance in this repair
iFixit iPhone X Screen Replacement Guide
Here is some tools you may need to help you complete the repair.
- Phillips #000 Screwdriver
- P2 Pentalobe Screwdriver
- Y000 Triwing Screwdriver
- iSclack opening tool
- Suction Cup
- Fine Tipped Curved Tweezers
- iGadget 5 piece opening picks
- Black Spudger
- uFix iOpener Heat bag
- iHold Evo Screen Holder
Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any quesions, please feel free to contact us either by phone (0508 IGADGET) or by email
- Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
- Always power down your device prior to working on it
- Make sure you always unplug the battery before attemping any component removal
- The earpiece and sensor flex cable needs to be transferred from your old screen
- True Tone is lost once you replace the screen. Use a True Tone serial transfer machine to keep the True Tone feature. Plug in the old screen, click copy, then plug in the new screen and click transfer - you are then good to go.
- Be careful when transferring your earpiece flex cable from your old screen, use a spudger to gently pry underneath the flex cable to loosen the glue. If the flex cable breaks, you will lose Face ID features. Watch the video above before attempting removal

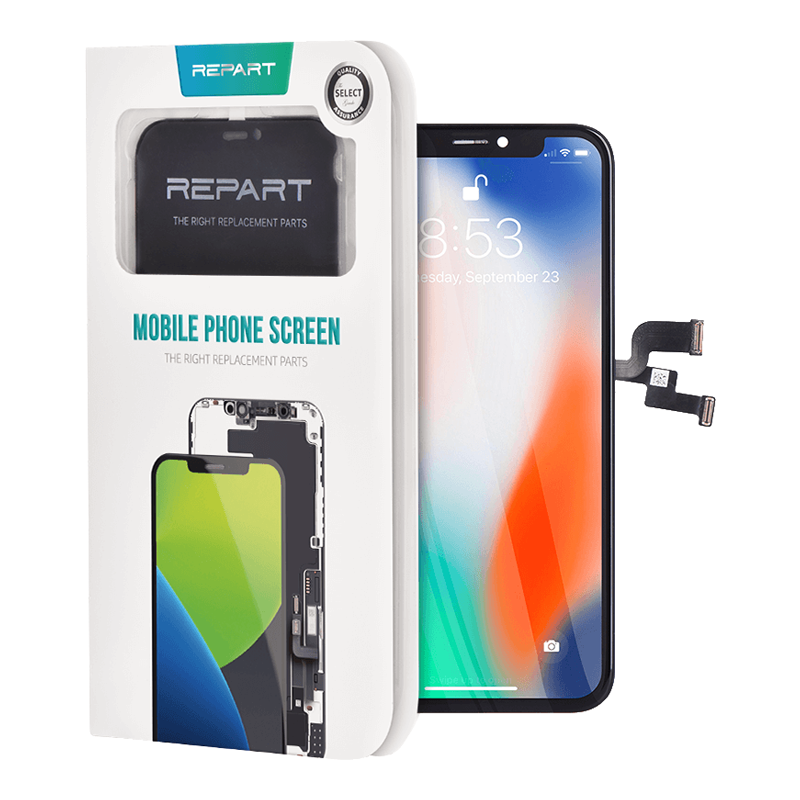

What’s In The Box
- 1x iPhone X IC3 Screen Replacement
