Check out the video above or the step by step guide below for assistance with this repair

Samsung Galaxy S25 FE USB-C Board Replacement Guide

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Heat Bag
• Suction Cup
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• Black Spudger
• Fine Tipped Curved Tweezers
• Isopropyl Adhesive Cleaning Alcohol Pad Wipes
• 4mm Tesa Tape 61395 Double Sided Adhesive Tape

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it

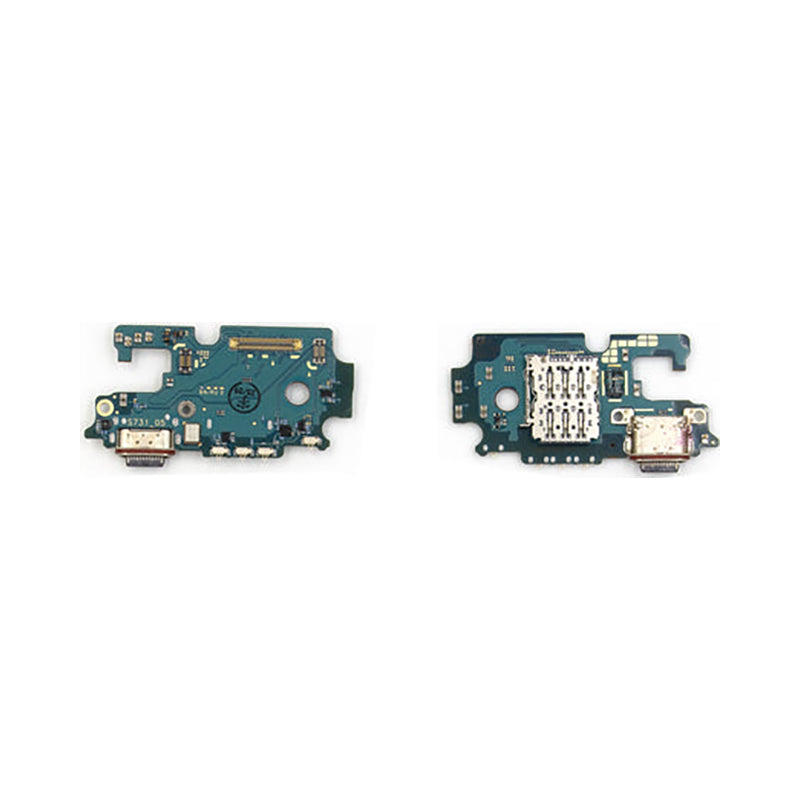

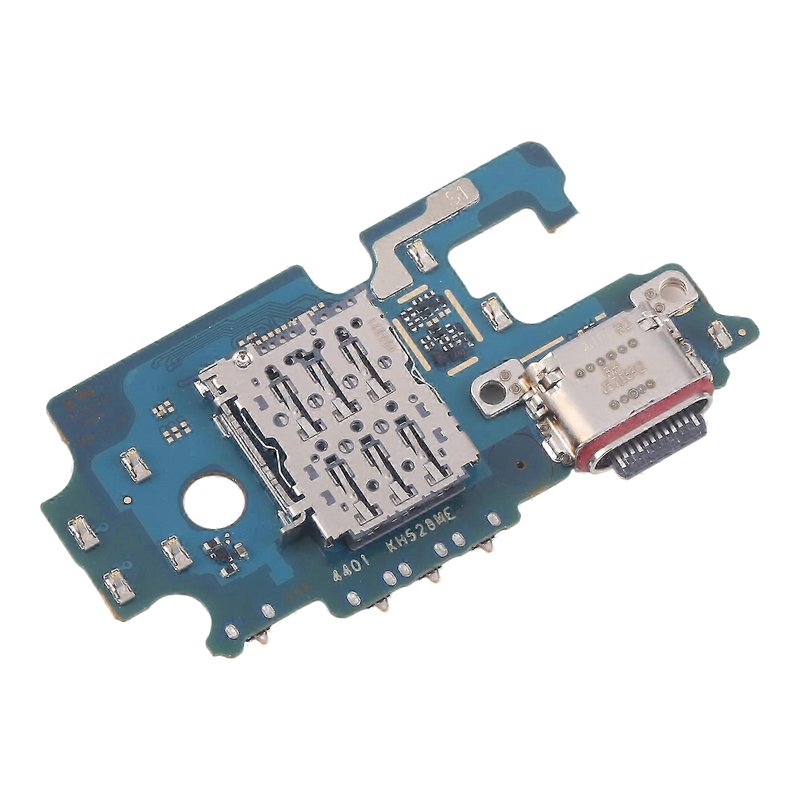

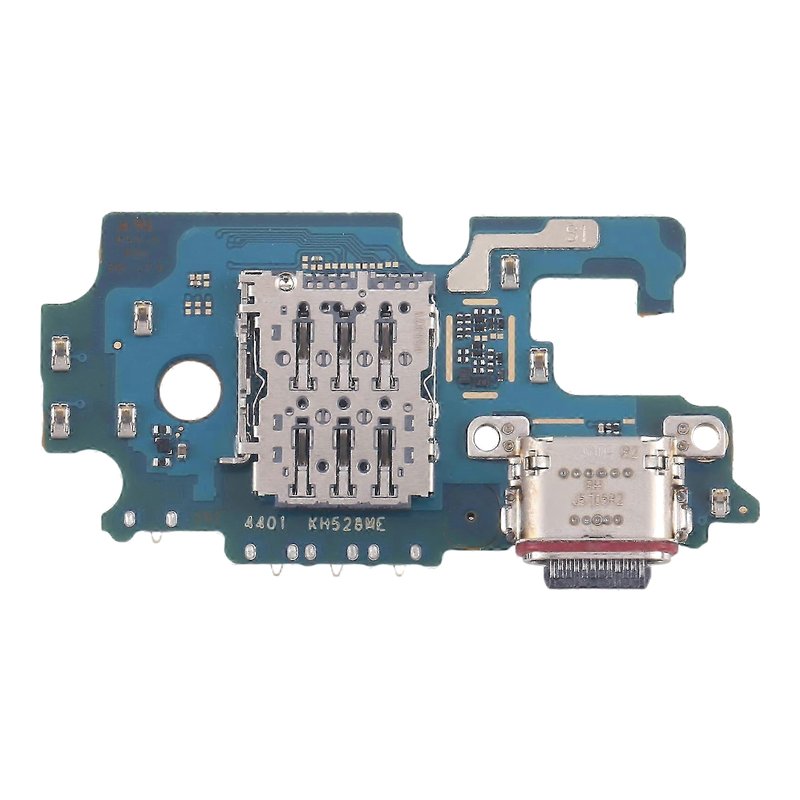

• Take the SIM card tray out before you start. The SIM card reader is on the charging port board, so the board can't come out with the tray still in and you can bend the reader pins. The eject hole is on the bottom edge next to a microphone hole, so make sure you use the right one.
• Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• The back glass is glued on. Warm the bottom edge with the iOpener for about two minutes, lift the glass with the suction cup and slice the adhesive with opening picks. Do not overheat the phone, as heat damages the screen and the battery.
• Only push an opening pick a few millimetres past the edge, especially along the top near the rear cameras. Any deeper and you can cut the cables inside the edge or damage the cameras.
• The wireless charging coil and the loudspeaker come out together to reach the charging port board. Unplug the coil connector, remove the 14 Phillips screws (6 on the coil, 8 on the loudspeaker) and lift the left side of the loudspeaker to release its clips. Press the coil connector back down until it clicks.
• Make sure you always unplug the battery before attempting any component removal

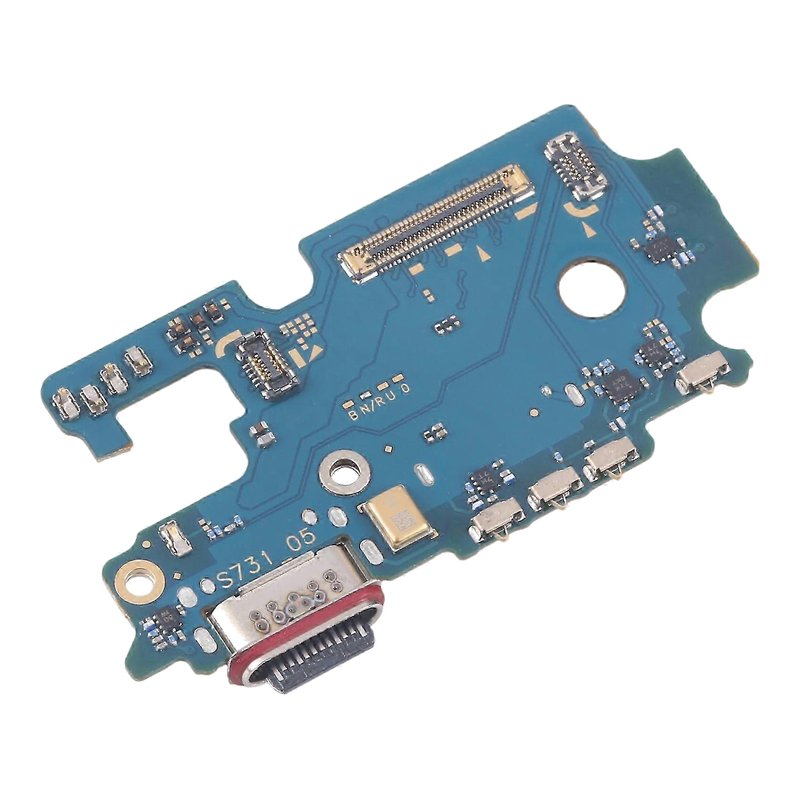

• Three cables clip onto the top edge of the charging port board: two interconnect cables to the main board and the fingerprint sensor cable. Unclip them with a spudger, and press all three back down until they click when refitting, or the phone may lose charging, signal or the fingerprint sensor.
• The board is held by two small Phillips screws. Lift it at the top corners with a spudger, away from the battery and the small components, and slide it out towards the top of the phone. When refitting, angle the USB-C port into its opening first, then press the middle of the board down until it clips in.
• Power on and test charging, the SIM, the microphone and the fingerprint sensor before you seal the back.
• Opening the phone breaks the factory seal. Clean off the old adhesive with alcohol and fit new adhesive when you close it up, or the phone will lose its water resistance rating.
