Check out the video above or the step by step guide below for assistance with this repair

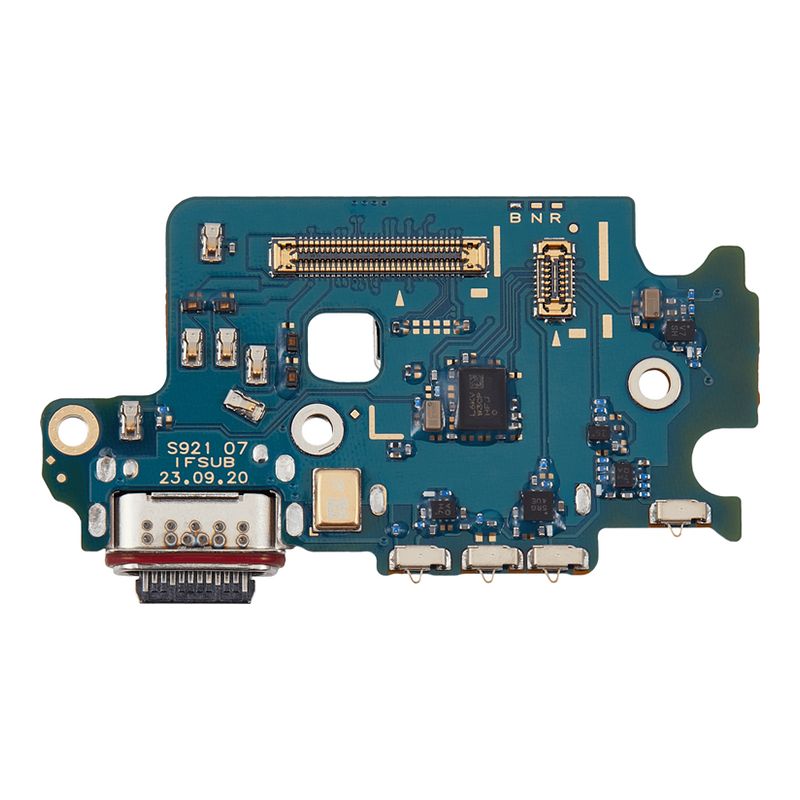

Samsung Galaxy S24 USB-C Port and Daughterboard Replacement Guide

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Heat Bag
• Suction Cup
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• Black Spudger
• Fine Tipped Curved Tweezers
• Isopropyl Adhesive Cleaning Alcohol Pad Wipes
• 4mm Tesa Tape 61395 Double Sided Adhesive Tape

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Take the SIM card tray out before you start. The SIM card reader is on the charging port board, so the board can't come out with the tray still in and you can bend the reader pins.
• Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• The back glass is glued on. Warm each edge with the iOpener in short bursts, lift it with the suction cup and slice the adhesive with opening picks. Do not overheat the phone, as heat damages the screen and the battery.
• Only push an opening pick about 4mm past the left edge, and no deeper than the middle of the pick above the flash. Any deeper and you can damage the rear cameras or the flash.
• The NFC and wireless charging plate and the loudspeaker have to come out together to reach the charging port board (13 Phillips screws, all 3.5mm). Do not tear the plate's cable, press its connector back down until it clicks, and clip the loudspeaker edges in before refitting the screws.
• Make sure you always unplug the battery before attempting any component removal
• The board connects to the main board with two interconnect cables marked SUB. Unclip both ends with a spudger, and press every connector back down until it clicks when refitting, or the phone may lose charging or signal.
• The board is held by 3 small Phillips screws. Lift it from the top right corner against the frame, not the battery. When refitting, angle the USB-C port into its opening first, then press the board flat.
• Power on and test charging, the SIM and the microphone before you seal the back.
• Opening the phone breaks the factory seal. Clean off the old adhesive with alcohol and fit new adhesive when you close it up, or the phone will lose its water resistance rating.
