Check out the video above or the step by step guide below for assistance with this repair

Samsung Galaxy S23 Ultra USB-C Port and Charging Board Replacement Guide

Here are some tools you may need to help you complete the repair.

• #00 Metal Phillips 2.0mm Screwdriver Tool (PH00)
• uFix iOpener Heat Bag
• Suction Cup
• iGadget 5 piece opening picks
• 5x iGadget Plastic Flexible Opening Cards
• Black Spudger
• Fine Tipped Curved Tweezers
• Isopropyl Adhesive Cleaning Alcohol Pad Wipes
• 4mm Tesa Tape 61395 Double Sided Adhesive Tape

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it

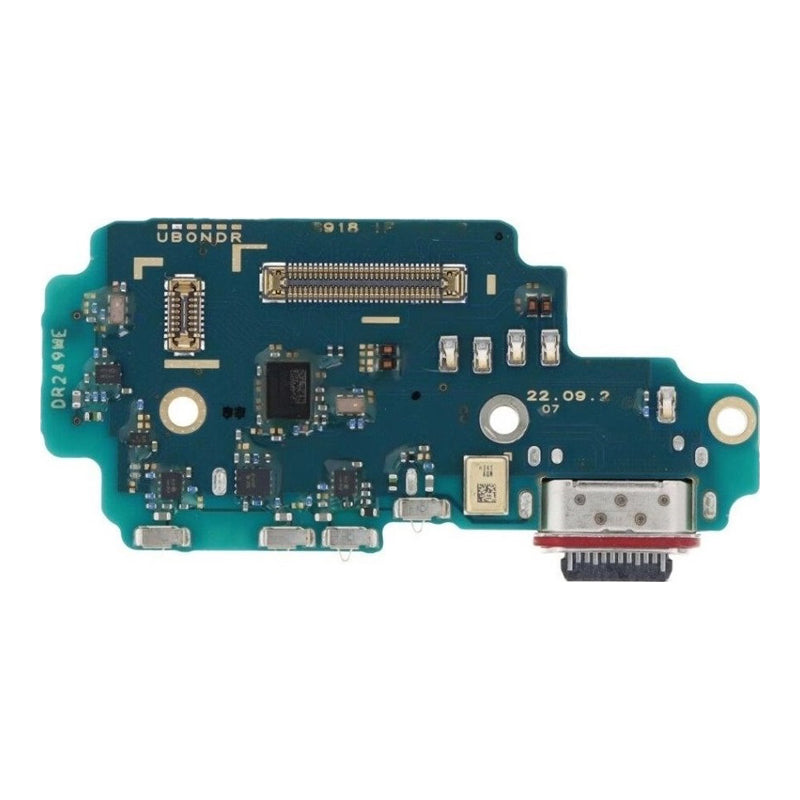

• Take the SIM card tray out before you start. The SIM card reader is on the charging port board, so the board can't come out with the tray still in and you can bend the reader pins.
• Always track your screws to avoid putting back in the wrong place and damaging your device. The screws are Phillips #00, mostly 3.5mm long. You can draw a picture of your phone and tape the screws to the right places or use a screw mat
• The back cover is glued glass and its curved corners crack easily. Warm the edges with the iOpener in short bursts until hot to the touch, no hotter, lift it with the suction cup and slice the adhesive with opening picks. Heat damages the screen and the battery.
• Only push an opening pick 4 to 5mm past the edge. Any deeper and you can cut the antenna cable, the power button cable or the rear cameras.
• The NFC and wireless charging plate and the loudspeaker have to come out to reach the charging port board. Do not tear the plate's cable, and press its connectors back down until they click.
• Make sure you always unplug the battery before attempting any component removal
• The board connects to the main board with flex cables. Unclip them with a spudger, and when refitting reconnect every flex and aerial (coaxial antenna) cable you unplugged, pressing each connector down until it clicks, or the phone may lose charging or signal.
• Lift the board with the point of the spudger under its top right corner, then pull it toward the top of the phone. When refitting, angle the USB-C port down into its opening first, then press the board flat.
• Power on and test charging, the SIM and the microphone before you seal the back.
• Opening the phone breaks the factory seal. Clean off the old adhesive with alcohol and fit new adhesive when you close it up, or the phone will lose its water resistance rating.
