Check out the video above for assistance with this repair

Here are some tools you may need to help you complete the repair.

• P2 Metal Pentalobe 0.8mm Screwdriver Tool
• Y000 Metal Triwing Tri-Point 0.6mm Screwdriver Tool
• #000 1.5mm Metal Phillips Screwdriver Tool (PH000)
• Large Blue Suction Cup Opening Tool
• Mechanic AK-15 King ESD Anti-Static Stainless Steel Red Curved Tweezers
• iGadget Plastic Triangle Opening Picks (set of 5)
• 5x iGadget Plastic Flexible Opening Cards
• Nylon Antistatic Spudger Pry Tool
• Or get the P2, Y000 and #000 screwdrivers, suction cup, tweezers, opening pick, opening card and spudger together in our 8 Piece iPhone Repair Toolkit
• Metal Stand-Off 2.5mm Screwdriver Tool
• iSclack Evo (Gen 3) Suction Cup Opening Tool for phones and tablets by Dottorpod
• uFix iOpener Microwaveable Heated Bag Opening Tool
• iHold Evo Screen Holding Opening Tool for iPads and iPhones with USB-C Adapter by Dottorpod
• iGadget Plastic Alcohol 200mL Bottle with Pump Top
• iPhone 13 Pro OLED Water Resistant Screen Gasket Adhesive

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any questions, please feel free to contact us either by phone (0508 IGADGET) or by email

• Drain the battery below 25% before you start on this repair
• Always power down your device prior to working on it
• Track your screws, they are many different lengths: two 6.8mm P2 pentalobe screws at the bottom edge, three 1.3mm Y000 screws on the battery connector cover, then small Phillips, Y000 and standoff screws inside. Draw a picture of your phone and tape the screws to the right places or use a screw mat
• Remove the two pentalobe screws beside the Lightning port, warm the bottom edge and lift the screen with a suction cup. Slide an opening pick under the screen no more than 3mm deep and keep it out of the left edge, where the display cables run. The screen opens like a book from the right side, so don't strain the cables
• Make sure you always unplug the battery before attempting any component removal. On the iPhone 13 Pro the battery connector sits under a small cover held by three Y000 screws: disconnect the battery first, then the display and front sensor cables, and reconnect the battery last

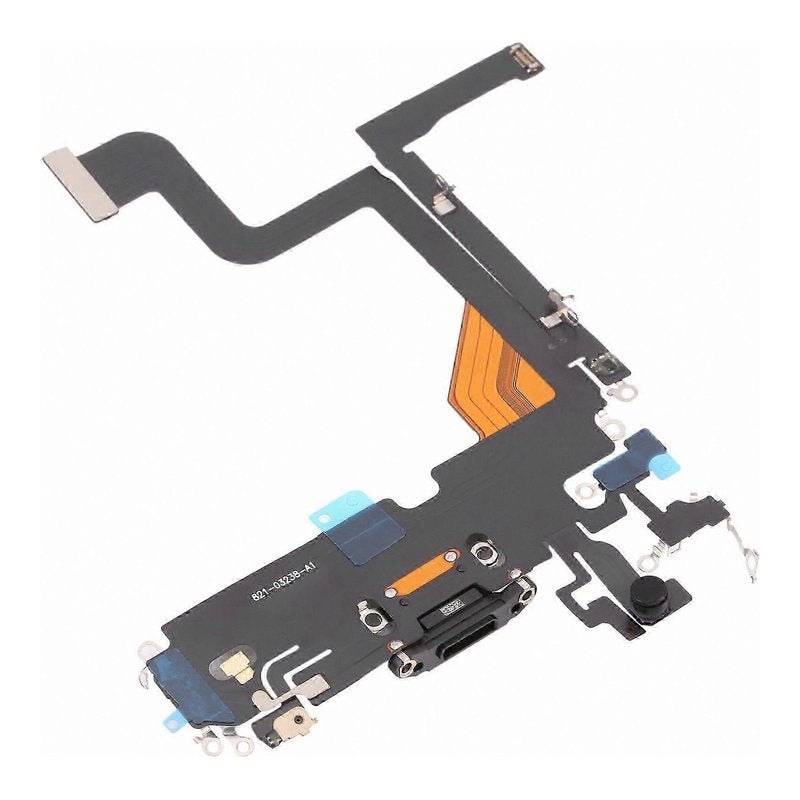

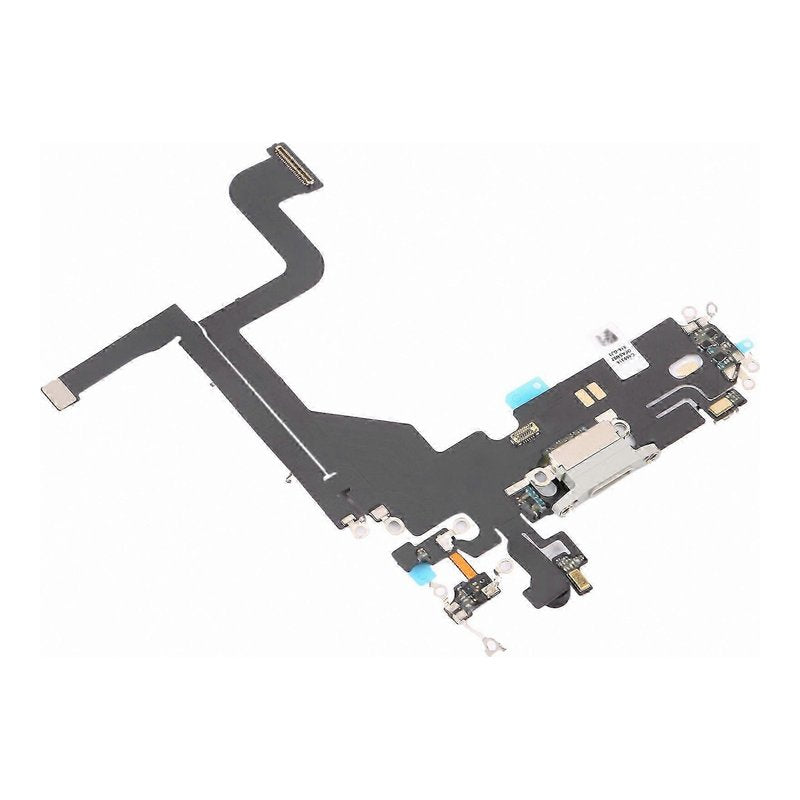

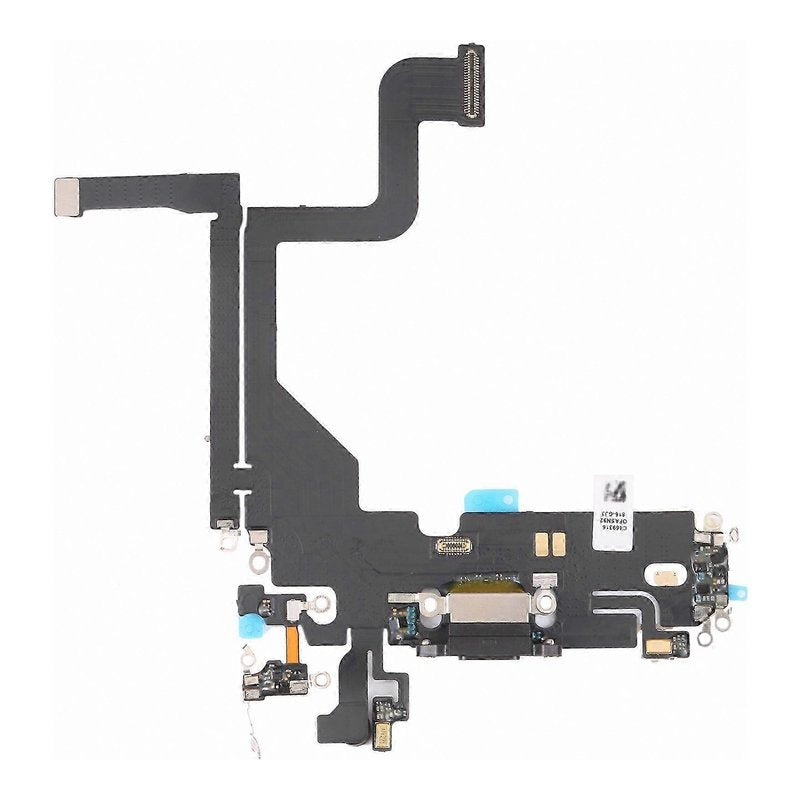

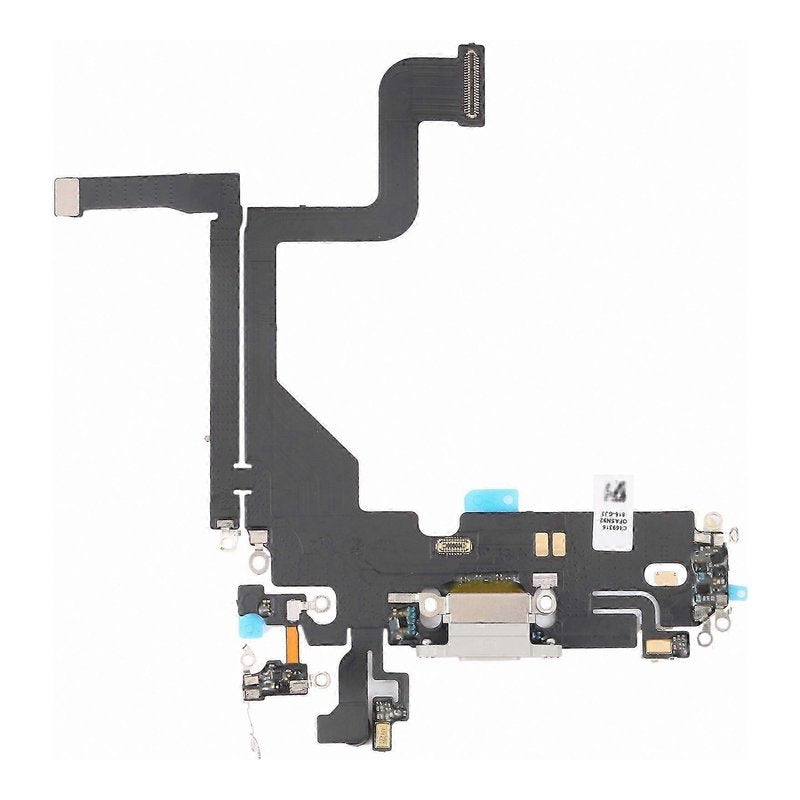

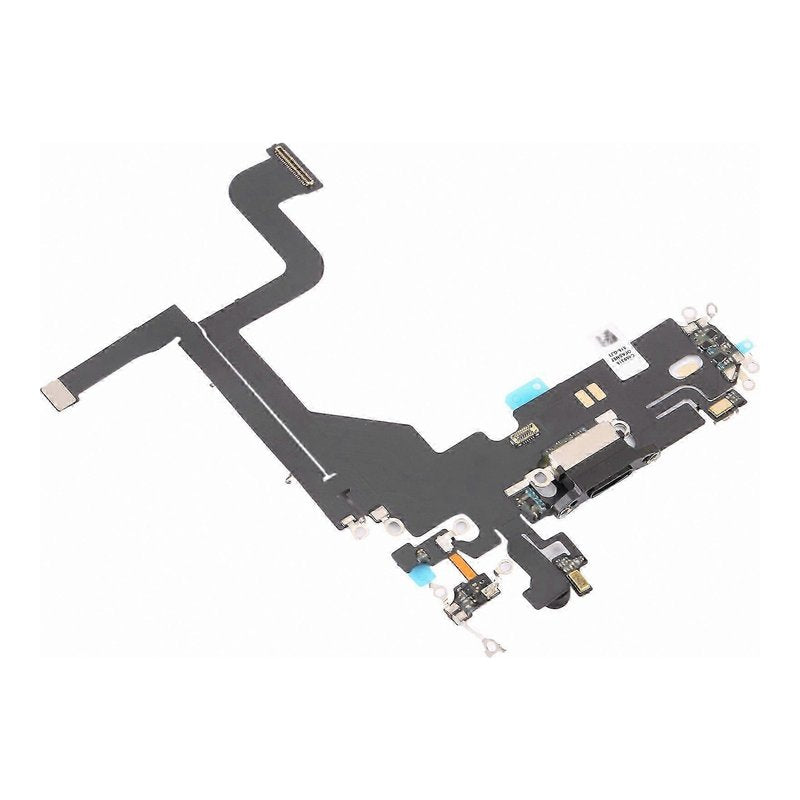

• The charging port sits under the logic board. The loudspeaker and Taptic Engine come out, then unplug every connector on the logic board and lift it out to reach the port
• The connector to the logic board can be tricky to align correctly so it fits into place. We recommend taking a pencil and tracing the original charging port so you know exactly where it gets positioned and lining the new charger port within the pencil lines
• Before closing the phone, test that it charges, connects to a computer and that the microphone works (record a voice memo)
• Opening your iPhone 13 Pro breaks its factory water-resistance seal. Clean off the old adhesive with isopropyl alcohol and fit a new screen adhesive seal when you reassemble it
